Features

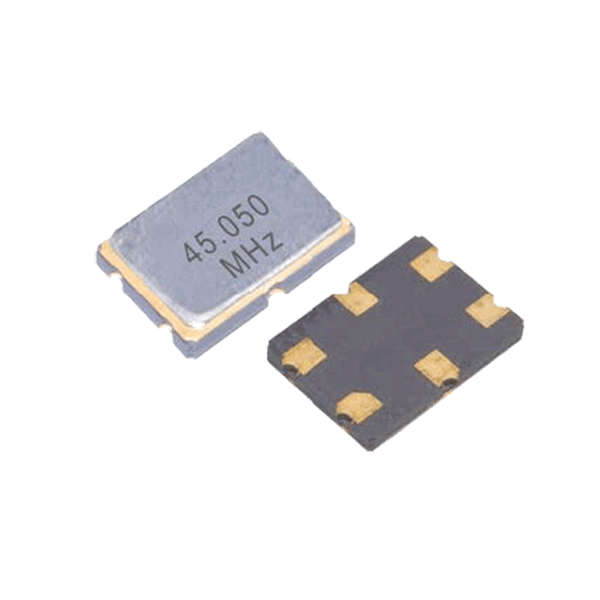

Typical 7.0×5.0×1.3mm, light weight and miniature SMD monolithic crystal filter
4 Pole function in a single package
Excellent guaranteed attenuation
Excellent shock and vibration resistance
Automatic mounting and reflow soldering
Applications: Radio communications, Mobile communications, Cordless phones, Cellular, Wireless communications, etc
RoHS Compliant / Pb-Free
Specifications
| Type |
CF Series 4-Pole SMD Monolithic Filter |
|||
| Nominal Frequency | 38.850MHz | 45.000MHz | 49.950MHz | 51.650MHz |
| Pole | 4 | 4 | 4 | 4 |
| Overtone Order | Fundamental | Fundamental | Fundamental | Fundamental |
| Pass Bandwidth | ±3.75KHz min./3dB | ±7.5KHz min./3dB | ±15KHz min./3dB | ±5KHz min./3dB |
| Stop Bandwidth | ±15KHz min./35dB | ±22KHz min./25dB | ±25KHz min./35dB | ±22KHz min./30dB |
| Ripple | 1dB max. | 1dB max. | 1dB max. | 1dB max. |
| Insertion Loss | 4.0dB max. | 4.0dB max. | 4.0dB max. | 4.0dB max. |
| Guaranteed Attenuation | 80dB min. | 80dB min. | 80dB min. | 80dB min. |
| Terminating Impedance | 560Ω//5pF | 600Ω//2pF | 400Ω//4.5pF | 400Ω//2.5pF |
| Operating Temperature | -20~+70℃, or specify | |||
| Packing Unit |
1000pcs./reel |
|||

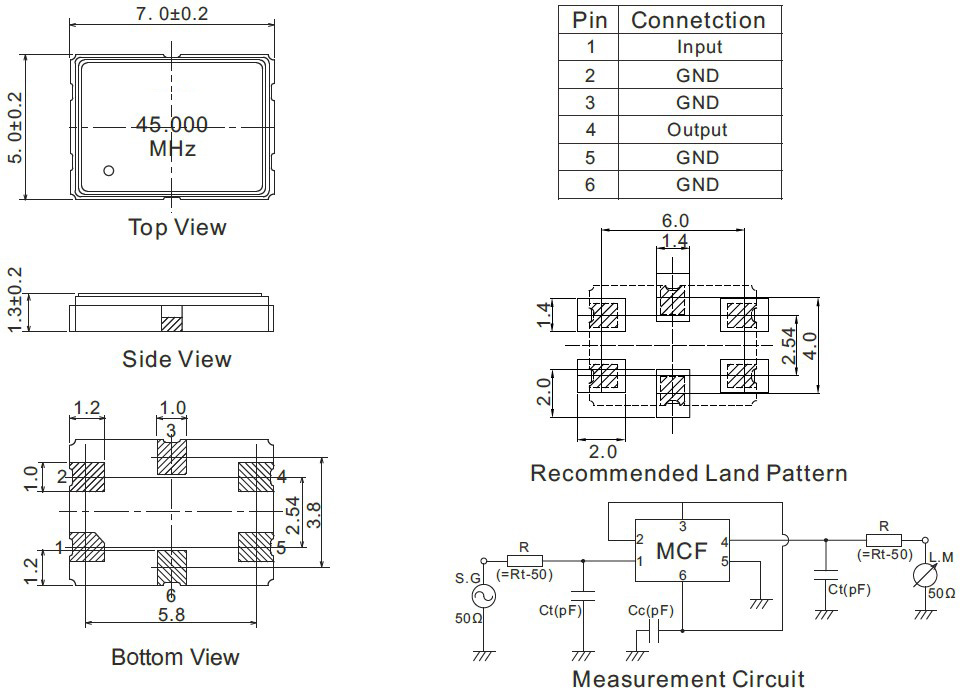

Dimensions [mm]
