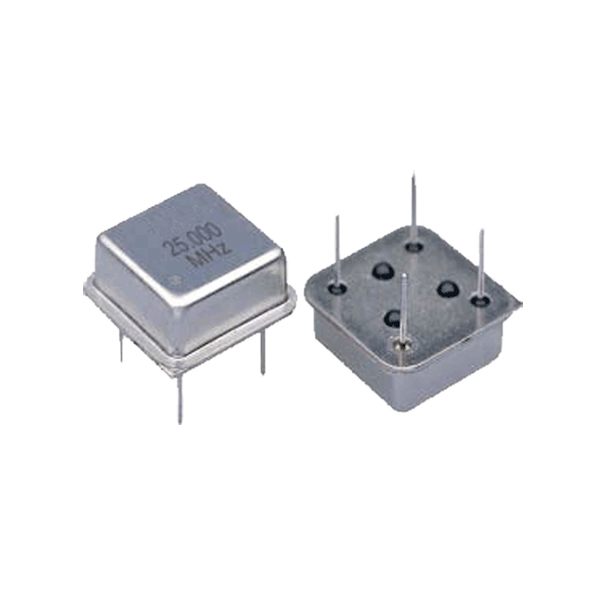

Features Of 6RH Series Half-size 8Pin DIP VCXO
All metal welded package
High precision characteristic covering up to wide frquency range from 1MHz to 80MHz
5V/3.3 operating voltage
CMOS output
3-state function
8-Pin DIP (Half-size package)
Applications: Telecommunications, Mobile communications, Avionics, Test equipment, Electronic instruments, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 6RH Series Half-size 8Pin DIP VCXO
Item/Type | 6RH Series (Half-size 8Pin DIP VCXO) | ||
Package | All metal, hermetically sealed, welt package | ||
Supply Voltage | 3.3V | 5V | |
Frequency Range |
1~80MHz |
||
Frequency Stability | ±25ppm, ±50ppm, or specify | ||
Operating Temperature | -20~+70℃, -40~+85℃, or specify | ||
Storage Temperature | -55~+125℃ | ||
Load |
|
15pF, or specify |
|
|
Voltage Voh | 3.0V Min. | 4.5V Min. |
Voltage Vol | 0.3V Max. | 0.4V Max. | |
Current Ioh | -4.0mA | -8.0mA | |
Current Iol | 4.0mA | 8.0mA | |
Duty Cycle | 40~60% | ||
Rise /Fall Time |
5ns Max. |
||
Frequency Control |
|
Positive Transfer Characteristic | |
Pullability | ±50ppm ,±100ppm,±150ppm,±200ppm Min. | ||
Control Voltage | 0.3Vdc to 3.0Vdc | 0.5Vdc to 4.5Vdc | |
Center Voltage | 1.65Vcc | 2.5Vcc | |
Monotonic Linearity | <±15% | <±15% | |
Input Impedance | 50K ohms Normal | ||
Supply Current | 40mA Max. | 60mA Max. | |
Output Type |
CMOS |
||
Packing Unit |
100pcs. |

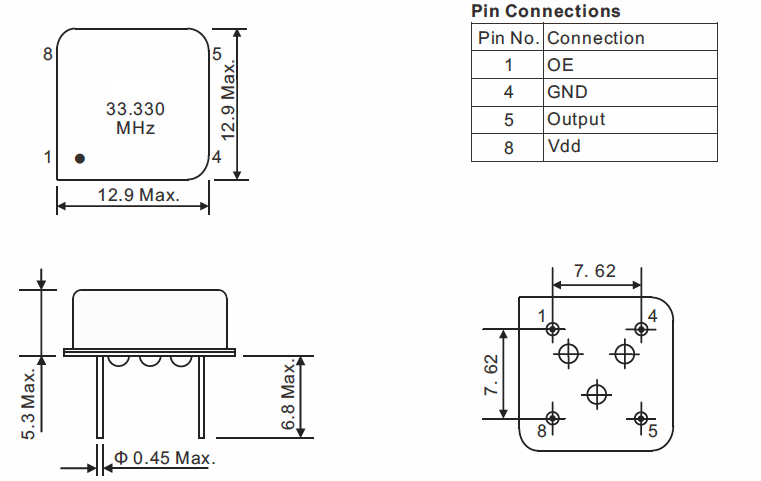

Dimensions[mm]
