Features

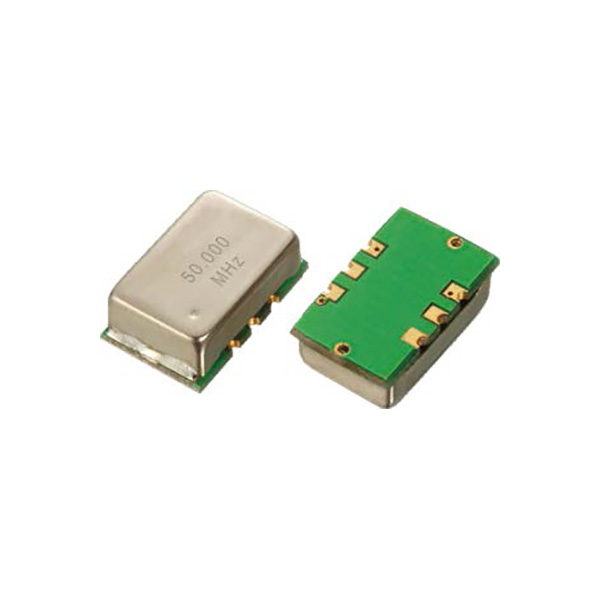

Differential LVDS Output Crystal Oscillator
Typical 14×9.6×5.6mm, LVDS output crystal oscillator
Output frequency range from 25MHz to 700MHz
Low supply voltage operation: 2.5V/3.3V
Surface mount package
Excellent low phase noise and jitter
3-state function available
Automatic mounting and reflow soldering
Applications: Server, SAN, Broadband Access, Smart Grid, Gigabit Ethernet, Fibre channel, etc
RoHS Compliant / Pb-Free
Specifications
| Type | 9D Series LVDS Output SMD Oscillator |
|
Output Type |
LVDS |
| Output Load | 100Ω |
| Supply Voltage | 2.5V/3.3V |
| Frequency Range | 25~700MHz |
| Supply Current | 80mA Max. |
| Overall Frequency Stability* | ±25ppm, ±50ppm, or specify |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
|
Voltage Vol (Max.) /Voh (Min.) |
0.9V /1.6V |
|
Rise (Tr) /Fall (Tf) Time |
1ns Max. |
| Duty Cycle |
45~55% |
| Start-up Time |
10ms Max. |
|
Phase Noise (156.25MHz) at 1KHz |
-120dBc/Hz |
|
Phase Jitter (12KHz~20MHz) |
1pS Max. |
| Aging (at 25℃) | ±3ppm/Year Max. |
| Packing Unit | 500pcs./Reel |
*: Including frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration

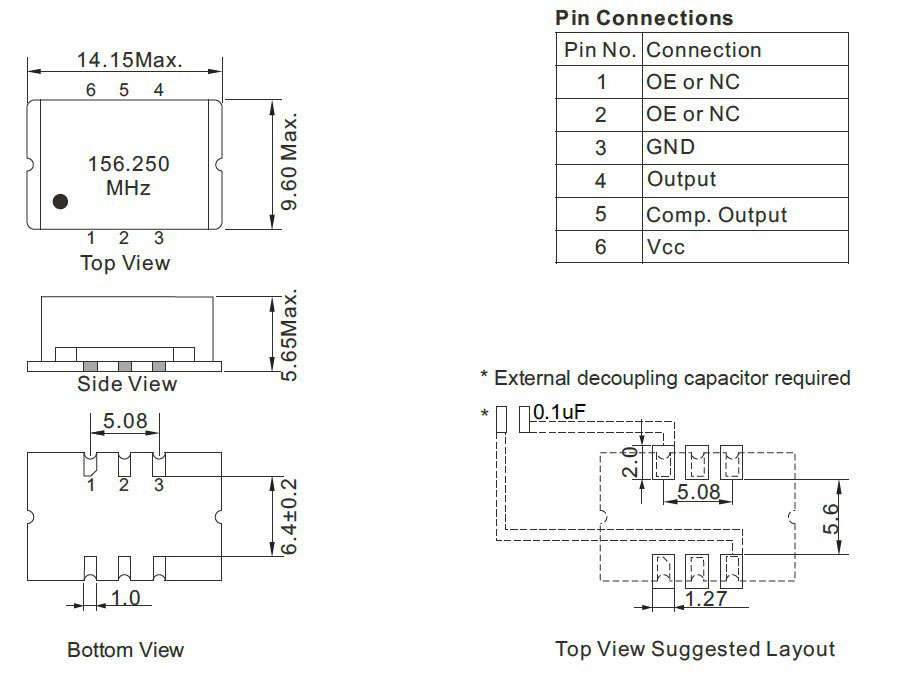

Dimensions [mm]
