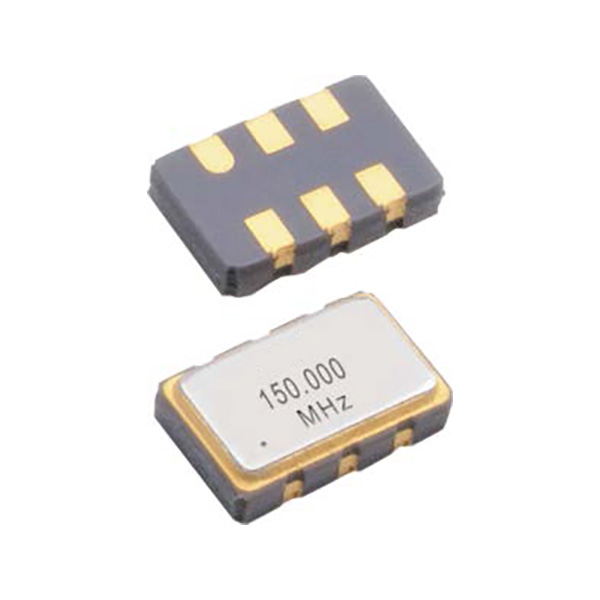

Features
Differential Output Crystal Oscillator (HCSL Output)
Output frequency range from 25MHz to 200MHz
Low supply voltage operation: 2.5V/3.3V
Excellent low phase noise and jitter
3-state function available
Automatic mounting and reflow soldering
Applications: PC, Server, Fibre channel, Gigabit ethernet, Base station, Mobile communications, etc
RoHS Compliant / Pb-Free
Specifications
Type | 5H Series HCSL Output SMD Oscillator |
Output Type |
HCSL |
Output Load | 50Ω |
Supply Voltage |
2.5V/3.3V |
Frequency Range | 25~200MHz |
Supply Current |
30mA Max. |
Overall Frequency Stability* |
±25ppm, ±50ppm, or specify |
Operating Temperature |
-40~+85℃, or specify |
Storage Temperature | -55~+125℃ |
Voltage Vol (Max.) /Voh (Min.) |
0mV /740mV |
Rise (Tr) /Fall (Tf) Time |
0.5ns Max. |
Duty Cycle | 45~55% |
Start-up Time | 10ms Max. |
Phase Noise (156.25MHz) @1KHz |
-105dBc/Hz |
Phase Jitter (12KHz~20MHz) |
1pS Max. |
Aging (at 25℃) |
±3ppm/Year Max. |
Packing Unit | 1000pcs./Reel |
*Including frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration

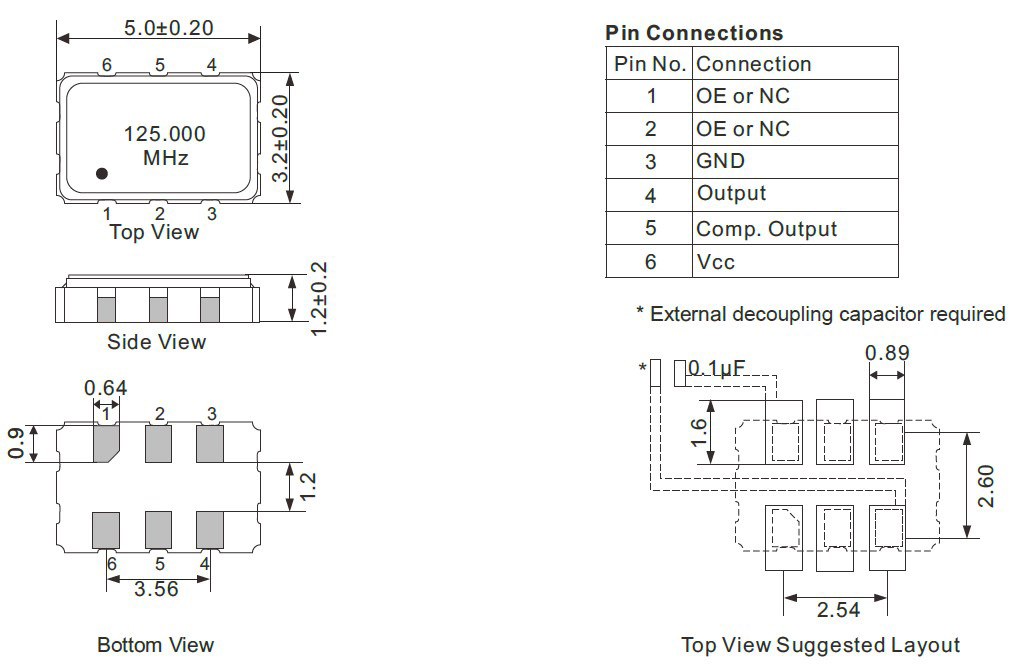

Dimensions [mm]
