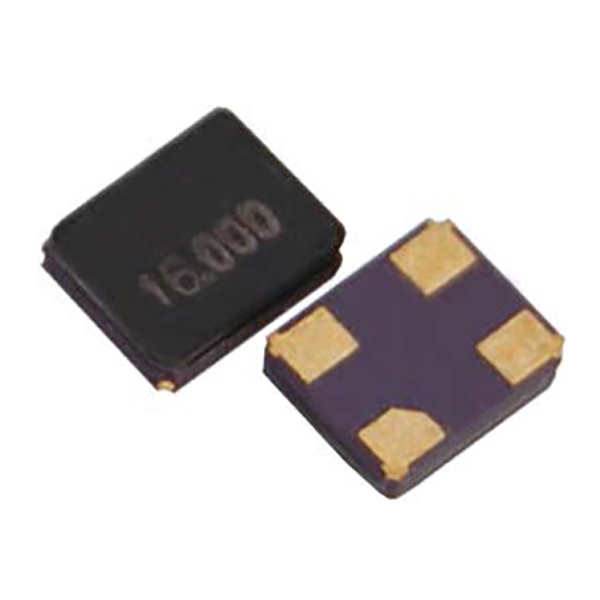

Features
3225 size miniature and lightweight SMD crystal unit with a low profile of 0.8mm
Wide frequency range from 8MHz up to 64MHz
Excellent heat resistance and environmental characteristics
High precision and high reliability
Automatic mounting and reflow soldering
Applications: DVC, Automotive Applications, Wireless Communications, PC, Phones, etc.
RoHS Compliant
Specifications
Type | 7V Glass Sealed SMD Crystal | ||||
Frequency Range |
8~10MHz |
10~12MHz | 12~20MHz |
20~27MHz |
27~64MHz |
Overtone Order | Fundamental | ||||
Load Capacitance | 8pF, 10pF, or specify | ||||
Drive Level | 1~50μW Max. (10μW Typ.) | ||||
Frequency Tolerance | ±10ppm, ±20ppm, or specify | ||||
Series Resistance |
400Ω Max. |
100Ω Max. |
80Ω Max. |
60Ω Max. | 50Ω Max. |
Shunt Capacitance | 5pF Max. | ||||
Operating Temperature | -20~+70℃, -40~+85℃, or specify | ||||
Storage Temperature | -55~+125℃ | ||||
Aging (at 25℃) | ±3ppm /Year Max. | ||||
Packing Unit |
3000pcs./Reel |

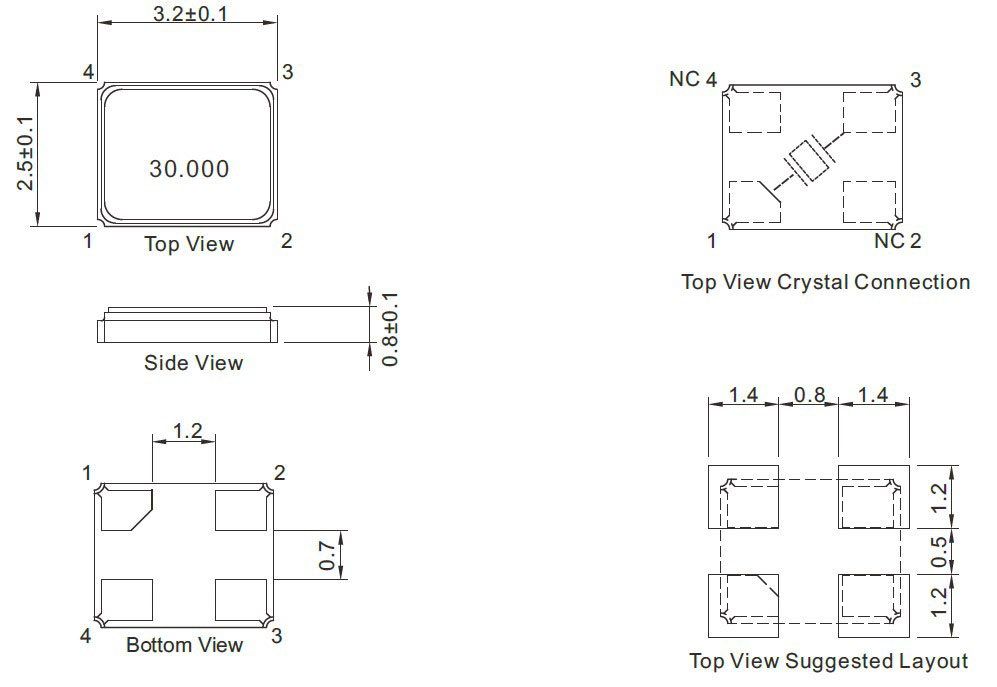

Dimensions [mm]
