Features

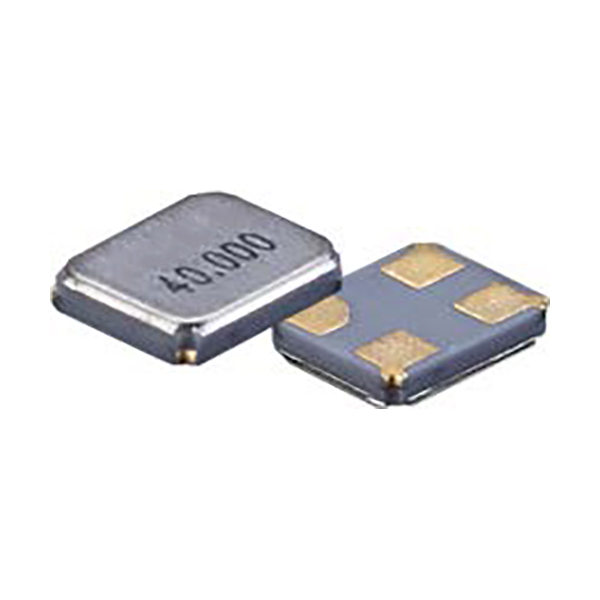

1210 size ultra-miniature and lightweight SMD crystal resonator with a low profile of 0.3mm
Wide frequency range from a comparatively low 36MHz up to 54MHz
High precision and high reliability
High reliable environmental performance
Automatic mounting and reflow soldering
Applications: Small Communication Device, IoT, Smartphone, SIP module, Consumer Devices and more.
RoHS Compliant & Pb-Free
Specifications
| Type | 7S Seam Sealed SMD Crystal |
| Frequency Range | 36~54MHz |
| Overtone Order | Fundamental |
| Load Capacitance | 8pF, 10pF, or specify |
| Drive Level | 1~100μW (50μW Typ.) |
| Frequency Tolerance | ±15ppm, ±20ppm, or specify |
| Series Resistance | 150Ω Max. |
| Shunt Capacitance | 5pF Max. |
| Operating Temperature | -20~+70℃, or specify |
| Storage Temperature | -40~+85℃ |
| Aging (at 25℃) | ±3ppm /Year Max. |
|
Packing Unit |
3000pcs./Reel |

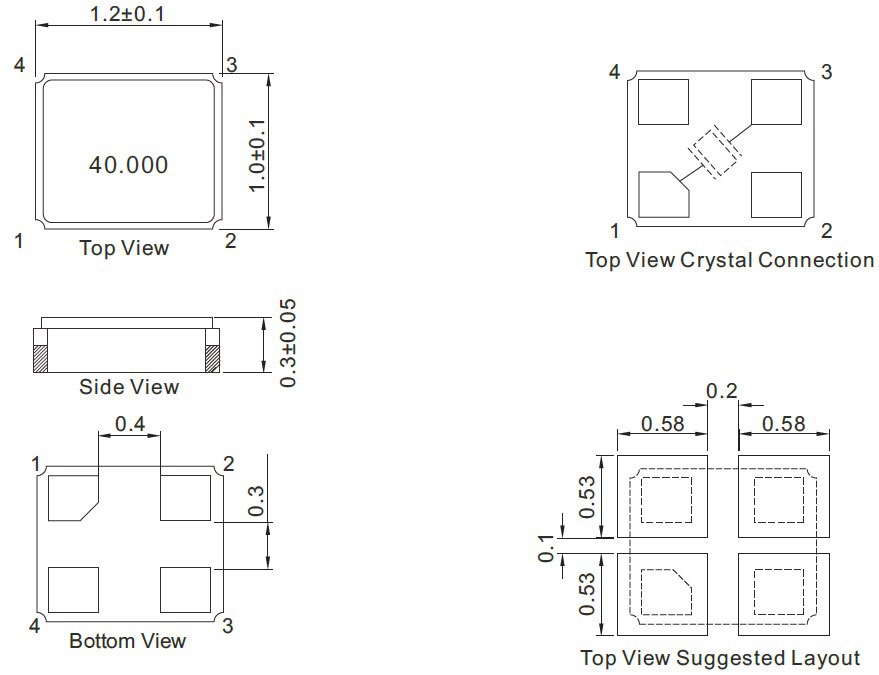

Dimensions [mm]
