Features
Resistance welded type crystal units.
A great number of standard frequencies.
Wide Frequency from 3MHz to 100MHz.
Offers excellent frequency pullability and lower equivalent series resistance.
Low cost and high mass production capability.
Application for PC, TV, Game Equipment, Communications, Consumer Device, Cable Modem, etc.
RoHS Compliant & Pb-Free.
Specifications
| Type | 6B Through-hole Crystal | |
| Frequency Range | 3~34 MHz | 27~100 MHz |
| Overtone Order | Fundamental | 3rd Overtone |
| Load Capacitance | 16pF, 20pF, 30pF, or specify | |
| Frequency Tolerance | ±10ppm, ±20ppmor specify | |
| Drive Level | 1~500μW Max. (100μW Typ.) | |
| Series Resistance | 30~200Ω | 60~100Ω |
| Operating Temperature | -20~+70℃, -40~+85℃, or specify | |
| Storage Temperature | -55~+125℃ | |
| Shunt Capacitance | 7pF Max. | |
| Aging (at 25℃) | ±3ppm / Year Max. | |
| Packing Unit | 200pcs. | |

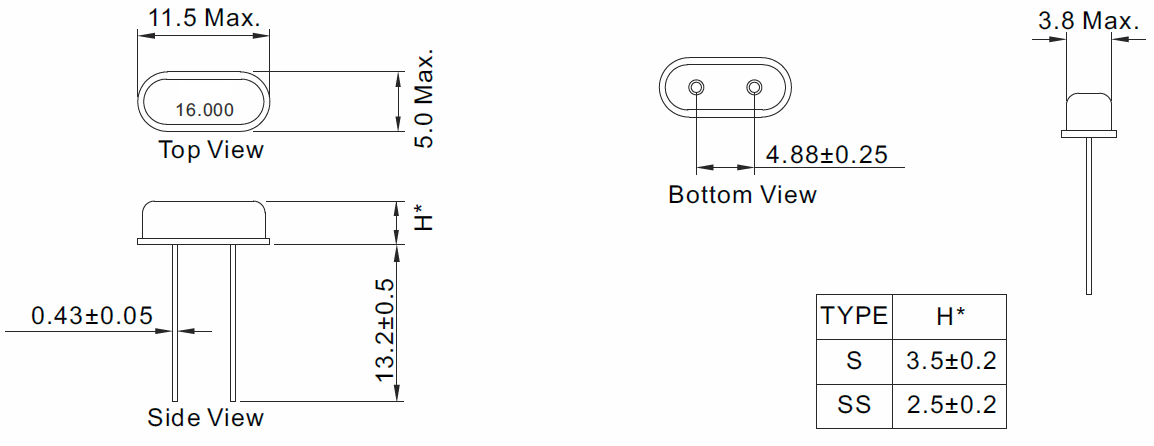

Dimensions [mm]
