Features

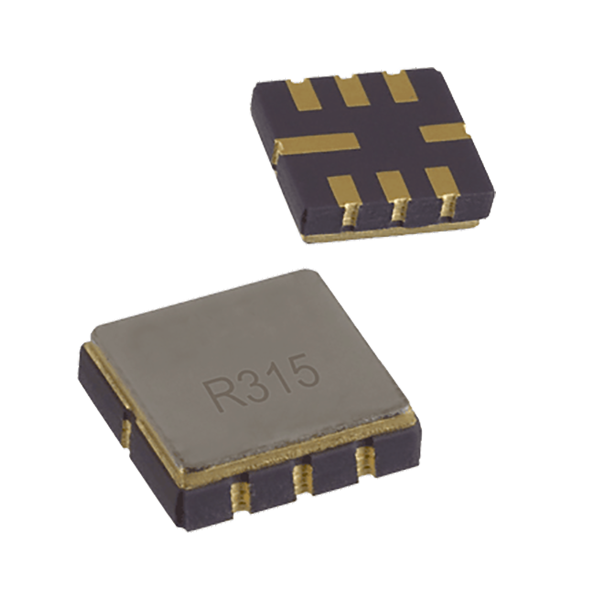

1-Port SAW Resonator
Ceramic package for surface mounted technology (SMT)
Electrostatic Sensitive Device (ESD)
Package size with 5.0*5.0*1.5mm
Package type QCC8C
Applications: Remote Control, Security, Alarms, etc.
RoHS Compliant & Pb Free
Specifications
| P/N | Center Frequency (MHz) |
Frequency Tolerance (kHz) |
Insertion Loss (dB) | Package Type |
|
R299 |
299.000 | ±30 /±75 |
1.2 |
QCC8C |
| R303.825 | 303.825 | ±30 /±75 | 1.5 | QCC8C |
| R303.875 | 303.875 | ±30 /±75 | 1.4 | QCC8C |
| R304.3 | 304.300 | ±30 /±75 | 1.1 | QCC8C |
| R315 | 315.000 | ±30 /±75 | 1.3 | QCC8C |
| R330 | 330.000 | ±30 /±75 | 1.6 | QCC8C |
| R358 | 358.000 | ±30 /±75 | 1.0 | QCC8C |
| R370 | 370.000 | ±30 /±75 | 1.4 | QCC8C |
| R390 | 390.000 | ±30 /±75 | 1.4 | QCC8C |
| R403.22 | 403.22 | ±30 /±75 | 1.5 | QCC8C |
| R403.55 | 403.550 | ±30 /±75 | 1.3 | QCC8C |
| R433 | 433.92 | ±30 /±75 | 1.2 | QCC8C |
| R434.42 | 434.420 | ±30 /±75 | 1.3 | QCC8C |
| R868.35 | 868.35 | ±75 /±150 | 1.0 | QCC8C |
For other frequencies and specifications, please contact our sales department.

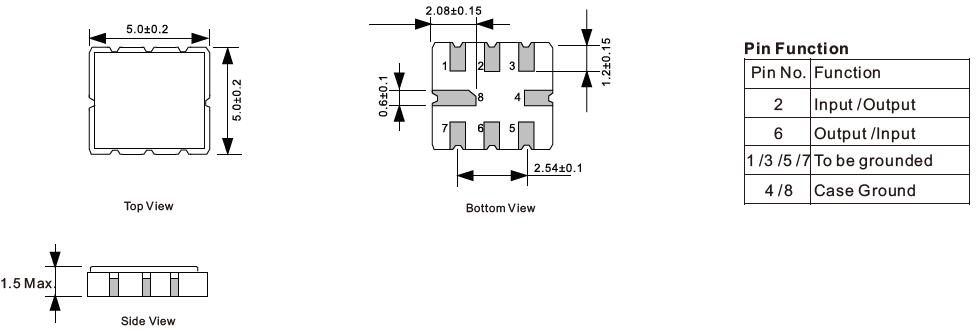

Dimensions [mm]
