Features

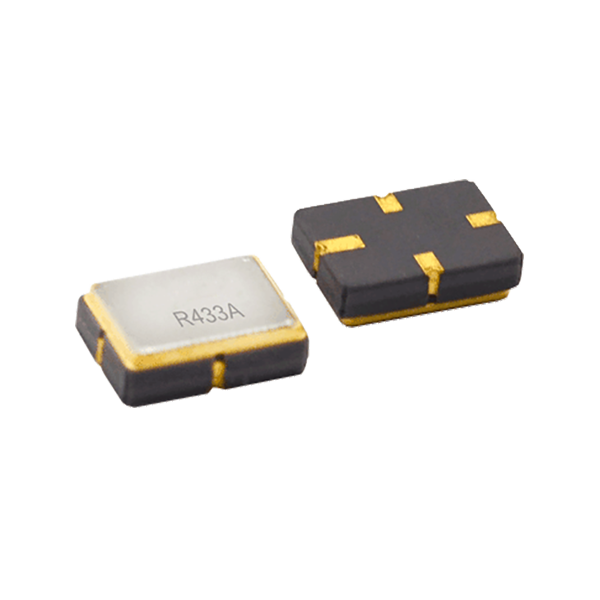

1-Port SAW Resonator
Ceramic package for surface mounted technology (SMT)
Electrostatic Sensitive Device (ESD)
Package size with 5.0×3.5×1.5mm
Package type QCC4A
Applications: Remote Control, Security, Alarm, etc.
RoHS Compliant & Pb Free
Specifications
| P/N | Center Frequency (MHz) |
Frequency Tolerance (kHz) |
Insertion Loss (dB) | Package Type |
|
R315 |
315.00 | ±30 / ±75 |
1.2 |
QCC4A |
| R318 | 318.00 | ±30 / ±75 | 1.2 | QCC4A |
| R346.8 | 346.80 | ±30 / ±75 | 1.2 | QCC4A |
| R370 | 370.00 | ±30 / ±75 | 1.4 | QCC4A |
| R423.22 | 423.22 | ±30 / ±75 | 1.4 | QCC4A |
| R433.42 | 433.42 | ±30 / ±75 | 1.1 | QCC4A |
| R433 | 433.92 | ±30 / ±75 | 1.3 | QCC4A |
| R434.42 | 434.42 | ±30 / ±75 | 1.4 | QCC4A |
| R868 | 868.35 | ±75 / ±150 | 1.0 | QCC4A |
For other frequencies and specifications, please contact our sales department.

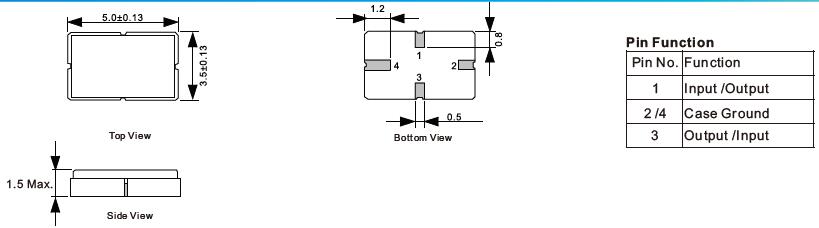

Dimensions [mm]
