Features
1-Port SAW Resonator
Ceramic package for surface mounted technology (SMT)
Electrostatic Sensitive Device (ESD)
Package size with 3.8*3.8*1.5mm
Package code DCC6
Applications: Remote Control, Security, Alarm, etc.
RoHS Compliant & Pb Free
Specifications
| Center Frequency (MHz) |
Frequency Tolerance (kHz) |
Insertion Loss (dB) | Package Type | |
|
R315 |
315.00 | ±30 / ±75 |
1.5 |
DCC6 |
| R385 | 385.00 | ±30 / ±75 | 1.8 | DCC6 |
| R418 | 418.00 | ±30 / ±75 | 1.6 | DCC6 |
| R433 | 433.92 | ±30 / ±75 | 1.5 | DCC6 |
| R868 | 868.35 | ±75 / ±150 | 1.0 | DCC6 |
For other frequencies and specifications, please contact our sales department.

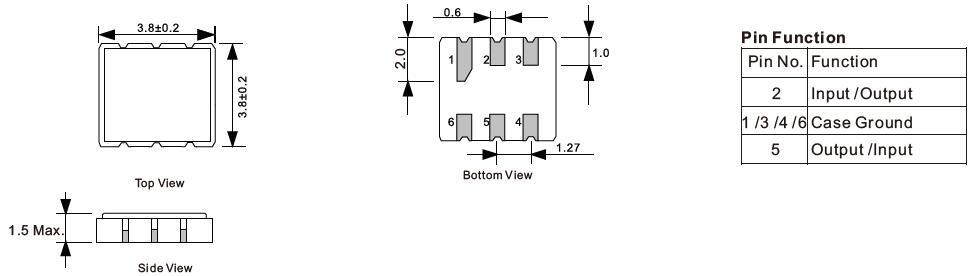

Dimensions [mm]
