Features

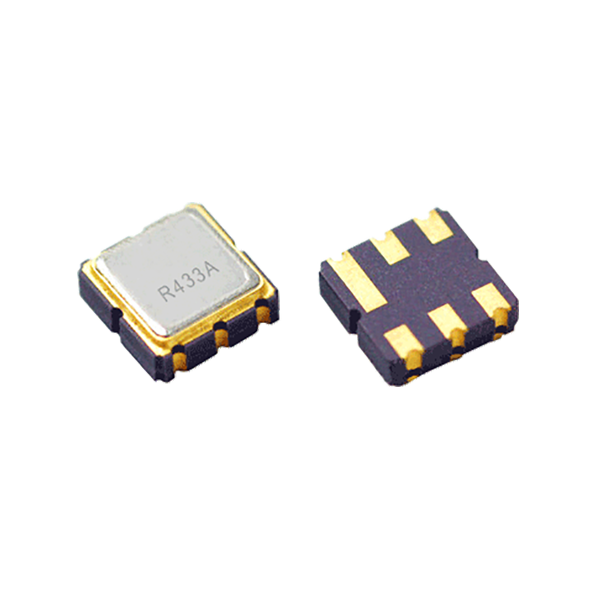

1-Port SAW Resonator
Ceramic package for surface mounted technology (SMT)
Electrostatic Sensitive Device (ESD)
Package size with 3.0*3.0*1.25mm
Package code DCC6C
Applications: Remote Control, Security, Alarm, etc.
RoHS Compliant & Pb Free
Specifications
| P/N | Center Frequency (MHz) |
Frequency Tolerance (kHz) |
Insertion Loss (dB) | Package Type |
|
R314.9 |
314.900 | ±30 /±75 |
1.4 |
DCC6C |
| R315 | 315.000 | ±30 /±75 | 1.4 | DCC6C |
| R320 | 320.000 | ±30 /±75 | 1.5 | DCC6C |
| R400 | 400.000 | ±30 /±75 | 1.61 | DCC6C |
| R418 | 418.000 | ±30 /±75 | 1.6 | DCC6C |
| R433.42 | 433.420 | ±30 /±75 | 1.4 | DCC6C |
| R433 | 433.920 | ±30 /±75 | 1.4 | DCC6C |
| R460 | 460.000 | ±30 /±75 | 1.4 | DCC6C |
| R490 | 490.000 | ±30 /±75 | 1.4 | DCC6C |
| R491 | 491.250 | ±30 /±75 | 1.8 | DCC6C |
| R863 | 863.300 | ±75 /±150 | 1.1 | DCC6C |
| R868 | 868.350 | ±75 /±150 | 1.0 | DCC6C |
| R915 | 915.000 | ±75 /±150 | 1.2 | DCC6C |
| R922 | 922.625 | ±75 /±150 | 1.0 | DCC6C |
For other frequencies and specifications, please contact our sales department.

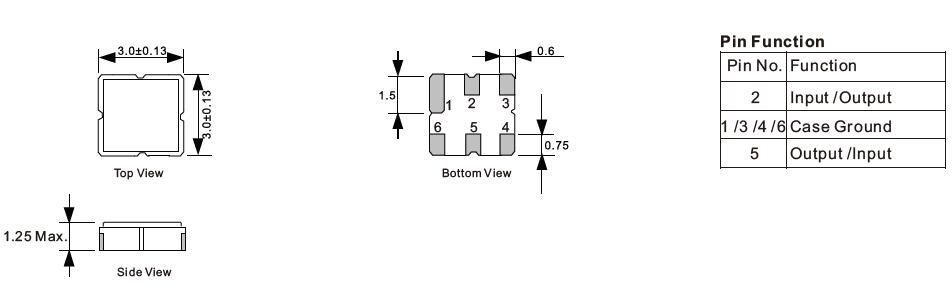

Dimensions [mm]
