Features

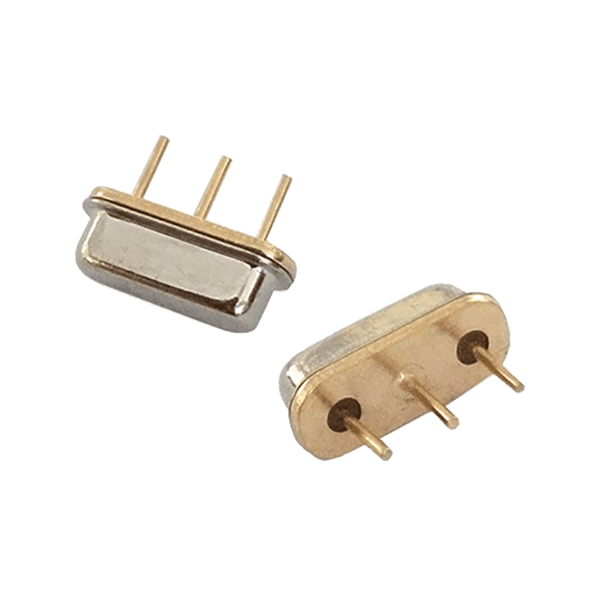

1-Port SAW Resonator
Metal case for D-11
Electrostatic Sensitive Device (ESD)
Package size with 8.3*3.45*1.7mm
Application: Remote control, Security, Alarm, etc.
RoHS Compliant & Pb Free
Specifications
| P/N | Center Frequency (MHz) |
Frequency Tolerance (kHz) |
Insertion Loss (dB) | Package Type |
|
R303.825 |
303.825 | ±30 /±75 |
1.5 |
D-11 |
| R303.875 | 303.875 | ±30 /±75 | 1.5 | D-11 |
| R315 | 315.000 | ±30 /±75 | 1.3 | D-11 |
| R316.8 | 316.800 | ±30 /±75 | 1.3 | D-11 |
| R330 | 330.000 | ±30 /±75 | 1.5 | D-11 |
| R350 | 350.000 | ±30 /±75 | 1.5 | D-11 |
| R360 | 360.000 | ±30 /±75 | 1.4 | D-11 |
| R370 | 370.000 | ±30 /±75 | 1.5 | D-11 |
| R390 | 390.000 | ±30 /±75 | 1.4 | D-11 |
| R418 | 418.000 | ±30 /±75 | 1.5 | D-11 |
| R433 | 433.920 | ±30 /±75 | 1.5 | D-11 |
| R868.35 | 868.350 | ±75 /±150 | 2.1 | D-11 |
For other frequencies and specifications, please contact our sales department.

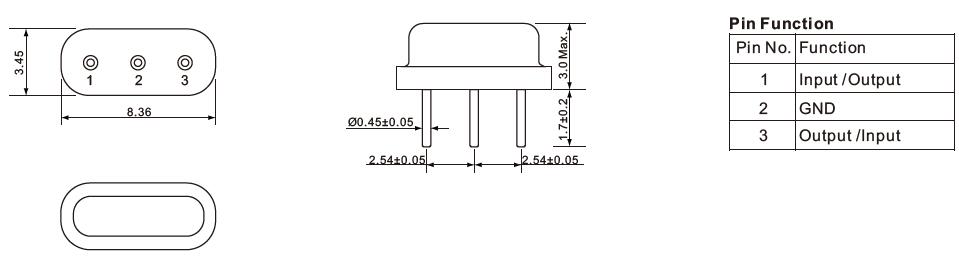

Dimensions [mm]
