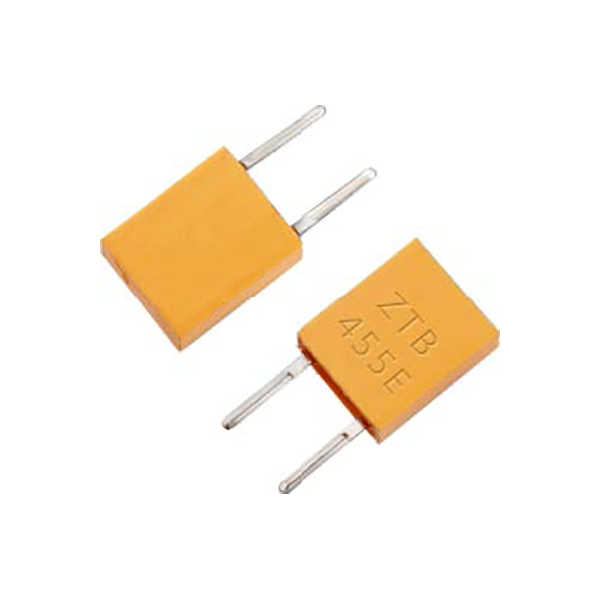

Features
Highly reliable design with excellent environmental resistance
Standardized for use in low profile device
Frequency range from 190kHz to 1250kHz
Low cost
Applications: Security, Consumer device, TV, Radio, Receiver, etc.
RoHS Compliant
Specifications
|
Part Numer |
Frequency Accuracy (at 25℃) |
Resonator Impedance |
Frequency Stability |
Aging For Ten Years
|
Load Capacitance C1 (pF) |
Load Capacitance C2 (pF) |
|
| DIP Type | SMD Type | ||||||
| ZTB190~249E |
|
±1KHz | ≦20 | ±0.3% | ±0.3% | 330 | 470 |
| ZTB250~374E |
|
±1KHz | ≦20 | ±0.3% | ±0.3% | 220 | 470 |
| ZTB375~429E | ZTB375~429Y | ±1KHz | ≦20 | ±0.3% | ±0.3% | 120 | 470 |
| ZTB430~509E | ZTB430~509Y | ±2KHz | ≦20 | ±0.3% | ±0.3% | 100 | 100 |
| ZTB510~699E | ZTB510~699Y | ±2KHz | ≦20 | ±0.3% | ±0.3% | 100 | 100 |
| ZTB700~1250E | ZTB700~1250Y | ±0.5% | ≦70 | ±0.3% | ±0.3% | 100 | 100 |

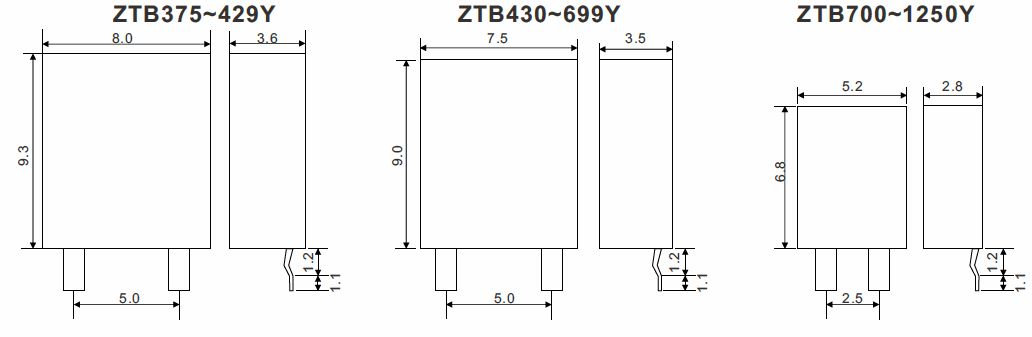

Dimensions [mm]

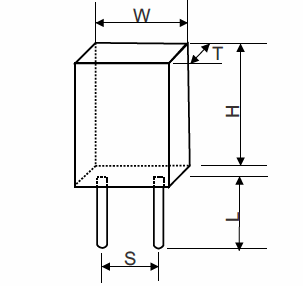

DIP Type
| Frequency Range (KHz) |
Width W (mm) |
Thickness T (mm) |
Height H (mm) |
Lead Space S (mm) |
Lead Length L (mm) |
| 190~249 | 13.5 | 3.8 | 14.7 | 10.0 | 8.0 |
| 250~374 | 11.0 | 3.8 | 12.2 | 10.0 | 7.0 |
| 375~400 | 7.9 | 3.6 | 9.3 | 7.7 | 7.0 |
| 401~699 | 7.0 | 3.5 | 9.0 | 5.0 | 4.0 (6.0) |
| 700~1250 | 5.2 | 2.8 | 6.8 | 2.5 | 3.5 |
