Features

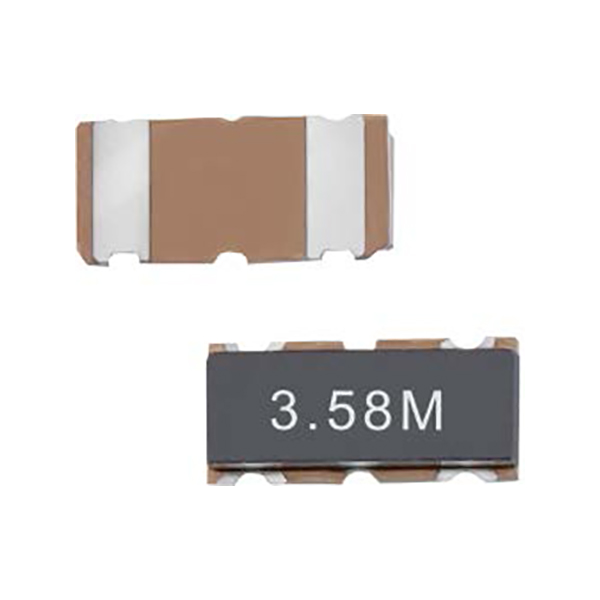

Surface mount package ceramic resonator
Frequency Range from 2MHz to 60MHz
Excellent temperature stability (±0.3%)
Automatic mounting and reflow soldering
Low cost
Applications: Security, Consumer device, PC, Receiver, Radio, Telecommunications, TV, etc
RoHS Compliant
Specifications
|
Part Number |
Frequency Range (MHz) |
Frequency Accuracy (at 25℃) |
Frequency Stability (%) |
Operating Temp. (ºC) |
Aging For Ten Years (%) |
| ZTACC...MG | 2.00~8.00 | ±0.5% | ±0.3% | -25~+80℃ |
±3 |
| ZTACR...MG | 4.00~8.00 | ±0.5% | ±0.3% | -25~+80℃ | ±3 |
| ZTACE...MG | 8.00~12.00 | ±0.5% | ±0.3% | -25~+80℃ | ±3 |
| ZTACS...MT | 6.00~13.00 | ±0.5% | ±0.3% | -25~+80℃ | ±3 |
| ZTACV...MT | 8.00~13.00 | ±0.5% | ±0.3% | -25~+80℃ | ±3 |
| ZTACS...MX | 13.00~60.00 | ±0.5% | ±0.3% | -25~+80℃ | ±3 |
| ZTACV...MX | 16.00~60.00 | ±0.5% | ±0.3% | -25~+80℃ | ±3 |
| ZTACW...MX | 20.00~60.00 | ±0.5% | ±0.3% | -25~+80℃ | ±3 |
| ZTACZ...MX | 24.00~45.00 | ±0.5% | ±0.3% | -25~+80℃ | ±3 |
| ZTACP...MG | 2.00~12.00 | ±0.5% | ±0.3% | -25~+80℃ | ±3 |

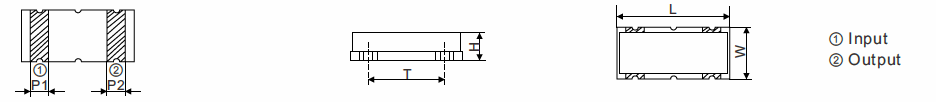

Dimensions [mm]
| Size Code |
Size |
|||||
| Part Number | L | W | H | P1 | P2 | T |
| ZTACC...MG | 7.4±0.2 | 3.4±0.2 | 1.8±0.2 | 1.2±0.2 | 1.2±0.2 | 5.0±0.2 |
| ZTACR...MG | 4.5±0.2 | 2.0±0.2 | 1.2 Max. | 0.8±0.2 | 0.8±0.2 | 1.5±0.2 |
| ZTACE...MG | 3.2±0.2 | 1.3±0.2 | 1.0 Max. | 0.4±0.2 | 0.4±0.2 | 1.2±0.2 |
| ZTACS...MT/MX | 4.7±0.2 | 4.1±0.2 | (1.2+A)±0.2 | 1.0±0.2 | 0.8±0.2 | 3.9±0.2 |
| ZTACV...MT/MX | 3.7±0.2 | 3.1±0.2 | (1.0+A)±0.2 | 0.9±0.2 | 0.7±0.2 | 3.0±0.2 |
| ZTACW...MX | 2.5±0.2 | 2.0±0.2 | 1.2 Max. | 0.5±0.2 | 0.4±0.2 | 2.0±0.2 |
| ZTACZ...MX | 2.2±0.2 | 1.8±0.2 | 1.2 Max. | 0.4±0.2 | 0.5±0.2 | 1.7±0.2 |
| ZTACP...MG | 6.0±0.2 | 3.0±0.2 | 1.8±0.2 | 1.2±0.2 | 1.2±0.2 | 5.0±0.2 |
