Features

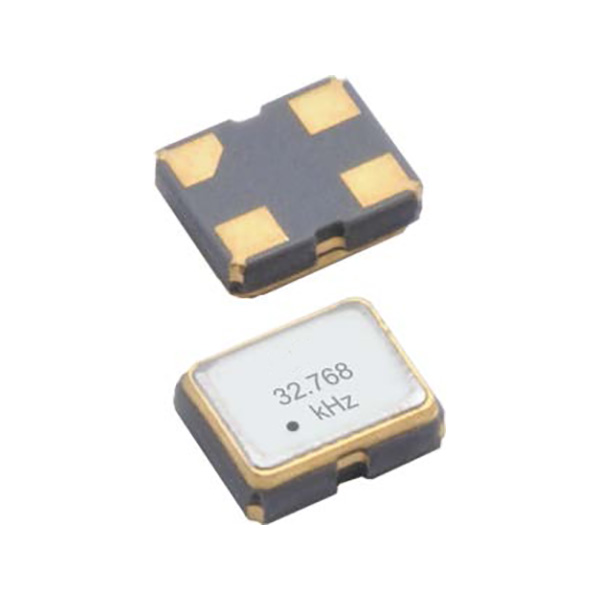

2520 size, 0.8mm high, 32.768kHz SMD crystal oscillator
Operation voltage: 1.8~3.3V
Built-in ASIC enables reduction of current consumption
3-state function available
Automatic mounting and reflow soldering
Applications: Real-time Clock Application, DSC, Set-top Box, HDTV, GPS, Mobile Phone, etc
RoHS Compliant & Pb Free
Specifications
| Type | 2D Series 32.768kHz SMD Oscillator |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
|
Nominal Frequency |
32.768kHz |
| Supply Voltage | 1.8~3.3V |
|
Supply Current |
70mA Max. |
| Frequency Stability | ±20ppm, or specify |
| Operating Temperature | -40~+85℃ |
| Storage Temperature | -55~+125℃ |
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vcc /0.9Vcc |
| Rise (Tr) /Fall (Tf) Time | 50ns Max. |
| Start-up Time |
2ms Max. |
| Duty Cycle | 45~55% |
|
3-state Voltage Vol (Max.) /Voh (Min.) |
0.3Vcc /0.7Vcc |
| Packing Unit | 3000pcs./Reel |

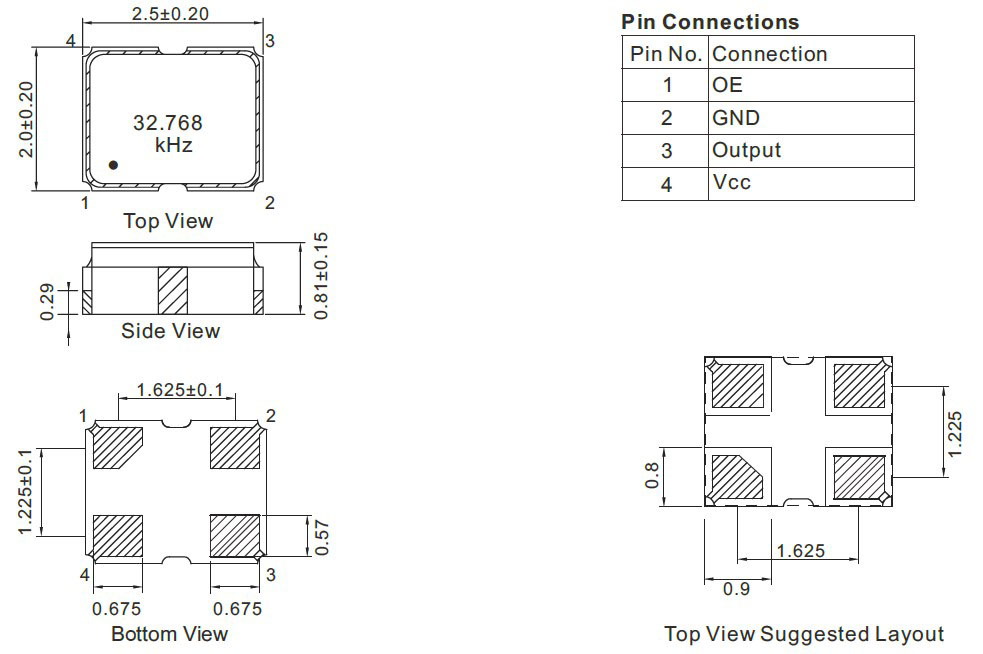

Dimensions [mm]
