Features

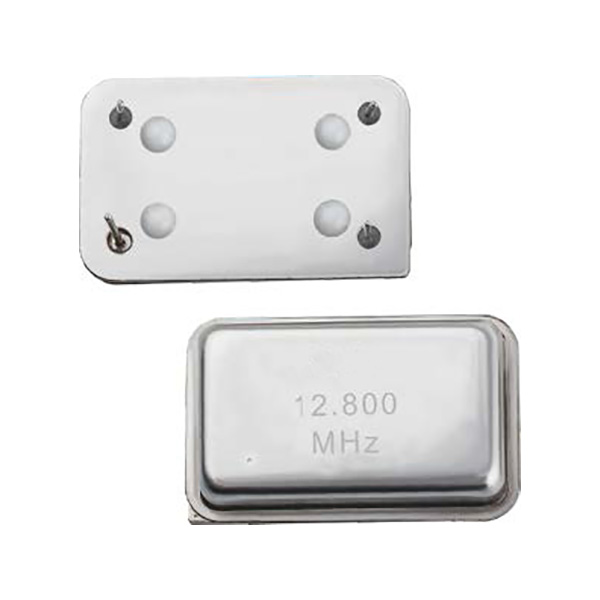

Typical 20.4×12.8×7.8mm, DIP TCXO/VCTCXO
Hermetically sealed DIP-14 package
Double sealed metal case and high reliability
VC-TCXO available
Output frequency: 1.25MHz~52MHz
CMOS or clipped sine wave output
Applications: Large-scale Equipment, Avionics, Communication Equipment, Test Equipment, etc
RoHS Compliant & Pb-Free
Specifications
| Type |
6T DIP TCXO / VC-TCXO |
||
|
Output Type |
Clipped Sine wave | CMOS | |
|
Output Load |
10KΩ//10pF | 15pF, or specify | |
| Frequency Range |
10~52MHz |
1.25~52MHz | |
| Supply Voltage |
2.8V / 3.3V |
||
|
Supply Current |
4mA Max. | 25mA Max. | |
|
Output Level |
0.8Vp-p Min. |
0.1Vcc/0.9Vcc | |
|
Frequency Stability |
Tolerance | ±2.0ppm Max. (after 2 reflows) | |
| vs Temperature | ±0.5ppm~±1.0ppm | ||
| vs Supply Voltage (Vcc±5%) |
±0.2ppm Max. |
||
| vs Load (Load varies±10%) | ±0.2ppm Max. | ||
| vs Aging | ±1.0ppm Max. | ||
| Auto Frequency Control (AFC) Range (VCTCXO) | ±5ppm~±10ppm (1.5±1V) | ||
| Strart-up Time |
2ms Max. |
||
|
Operating Temperature |
-40~+85℃, or specify | ||
| Duty Cycle |
|
40~60% | |
|
Phase Noise @10MHz |
100kHz | -1115dBc/Hz | |
| 1kHz | -135dBc/Hz | ||
| 10kHz | -148dBc/Hz | ||
| Packing Unit | 100pcs. | ||

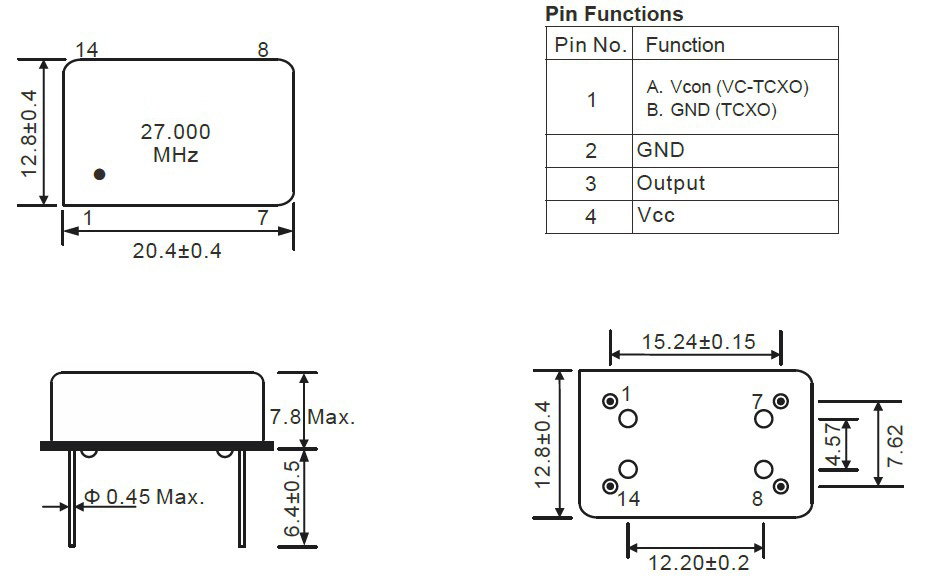

Dimensions [mm]
