Features

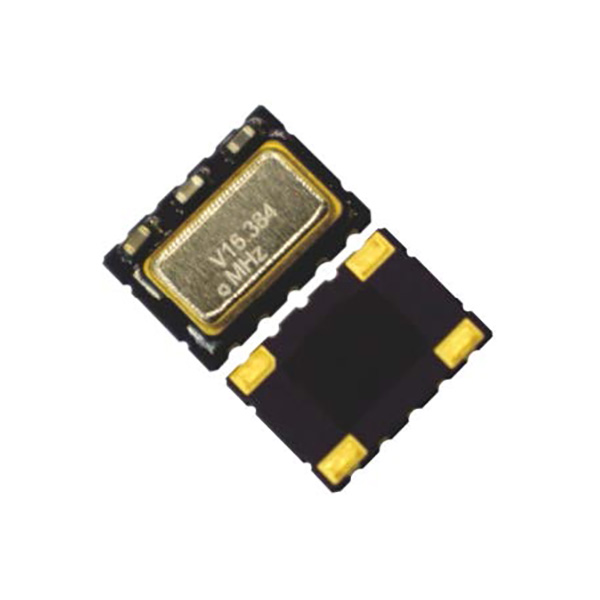

Typical 7.0×5.0×1.9mm ceramic SMD package.
CMOS and clipped sine wave (without DC-cut capacitor) output.
Output frequency range: 5MHz to 52MHz
Temperature stability: ±0.5ppm~±2ppm
VCTCXO available
Automatic mounting and reflow soldering
Applications: Base Station, WiMAX, Femtocell, WLAN, Wireless Communications, etc
RoHs Compliant & Pb-Free
Specifications
| Type |
8T Series SMD TCXO / VC-TCXO |
||
|
Output Type |
Clipped Sine wave | CMOS | |
|
Output Load |
10KΩ//10pF | 15pF, or specify | |
| Frequency Range |
5~52MHz |
||
| Supply Voltage |
3.3V / 5.0V |
||
|
Supply Current |
3.5mA Max. | 6mA Max. | |
|
Output Level |
0.8Vp-p Min. |
0.1Vcc/0.9Vcc | |
|
Frequency Stability |
Tolerance | ±2.0ppm Max. (after 2 reflows) | |
| vs Temperature | ±0.05ppm~±0.5ppm | ||
| vs Supply Voltage (Vcc±5%) |
±0.3ppm Max. |
||
| vs Load (Load varies±10%) | ±0.2ppm Max. | ||
| vs Aging | ±1.0ppm Max. | ||
| Auto Frequency Control (AFC) Range (VCTCXO) | ±5ppm~±10ppm (1.5±1V) | ||
| Start-up Time |
2ms Max. |
||
|
Operating Temperature |
-40~+85℃, or specify | ||
| Duty Cycle |
|
45~55% | |
|
Phase Noise @10MHz |
100KHz | -130dBc/Hz | |
| 1KHz | -145dBc/Hz | ||
| 10KHz | -154dBc/Hz | ||
| Packing Unit | 1000pcs./Reel | ||

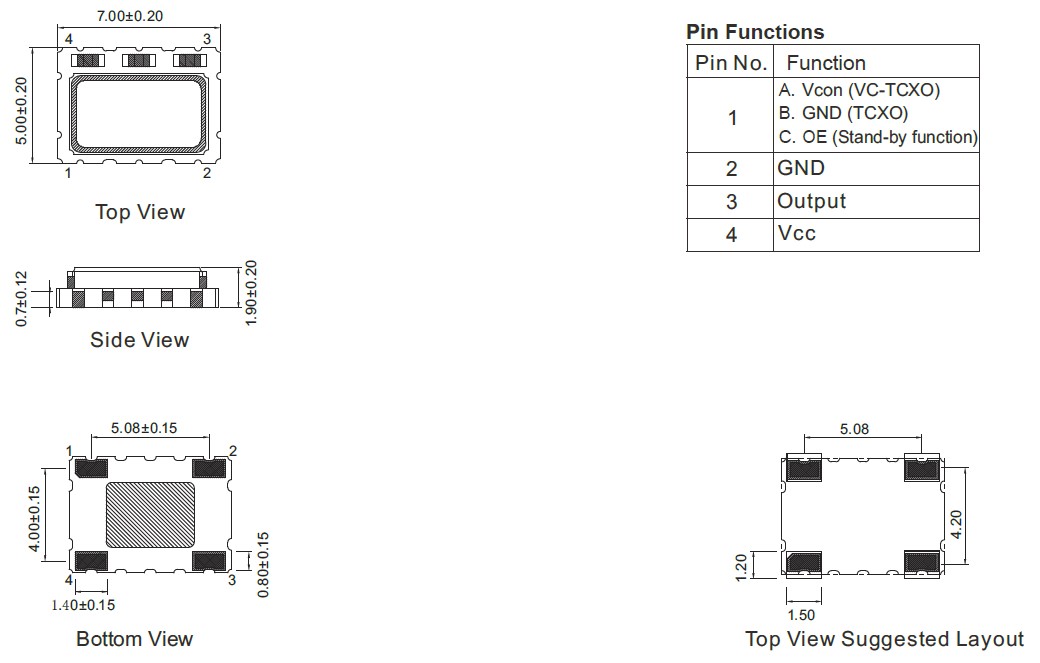

Dimensions [mm]
