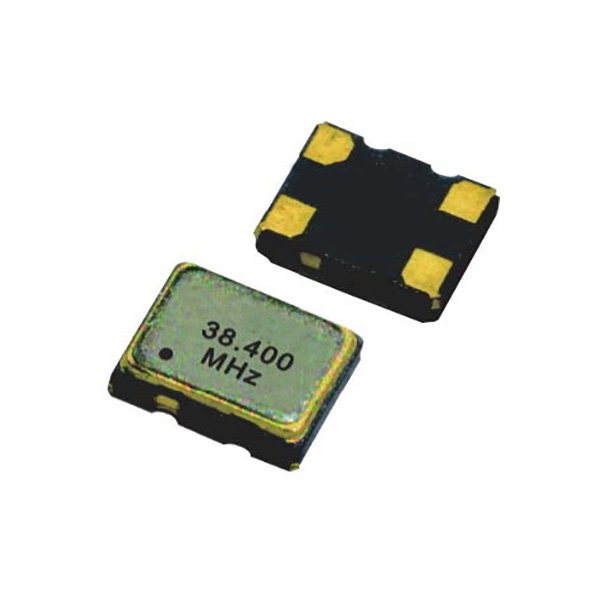

Features
Output frequency range from 10MHz to 52MHz
2520 size, 0.80mm high SMD TCXO / VC-TCXO
Low voltage operations and low phase noise
Temperature stability: ±0.5ppm~±2.5ppm
VCTCXO available
Automatic mounting and reflow soldering
Applications: Mobile phone, Wearables, IoT, GPS, WLAN, and more
RoHS Compliant & Pb-Free
Specifications
| Type | 7W Series SMD TCXO / VC-TCXO | ||
|
Output Type |
Clipped Sine wave | ||
|
Output Load |
10KΩ//10pF | ||
|
Supply Voltage |
1.8~3.3V | ||
|
Frequency Range |
10~52MHz | ||
|
Supply Current |
2.0mA Max. |
||
|
Output Level |
0.8Vp-p Min. |
||
| Frequency Stability | Tolerance | ±2.0ppm Max. (after 2 reflows ) | |
| vs Temperature | ±0.5ppm~±2.5ppm | ||
| vs Supply Voltage | ±0.2ppm Max. (Vcc±5%) | ±0.2ppm Max. (Vcc±5%) | |
| vs Load | ±0.2ppm Max. (Load varies±10%) | ||
| vs Aging | ±1.0ppm Max./Year | ||
|
Auto Frequency Control (AFC) Range |
±5ppm~±10ppm (1.4±1V) | ||
| Start-up Time |
2ms Max. |
||
| Operating Temperature | -30~+85℃ | ||
|
Phase Noise @ 19.2MHz |
100Hz |
-115dBc/Hz | |
|
1kHz |
-135dBc/Hz | ||
| 10kHz |
-148dBc/Hz |
||
| Packing Unit | 3000pcs./Reel | ||

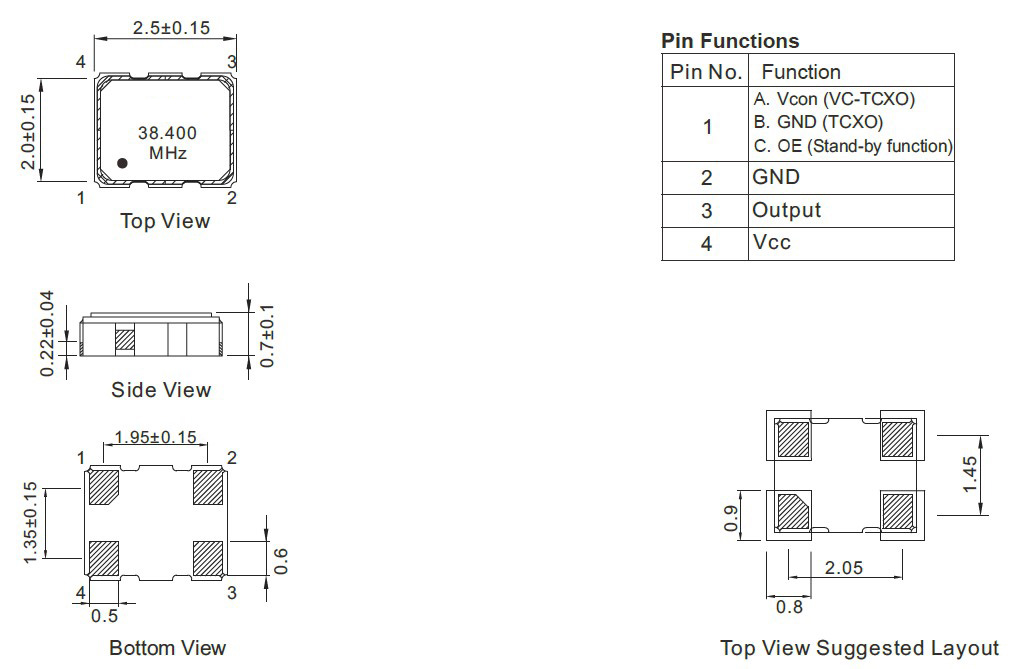

Dimensions [mm]
