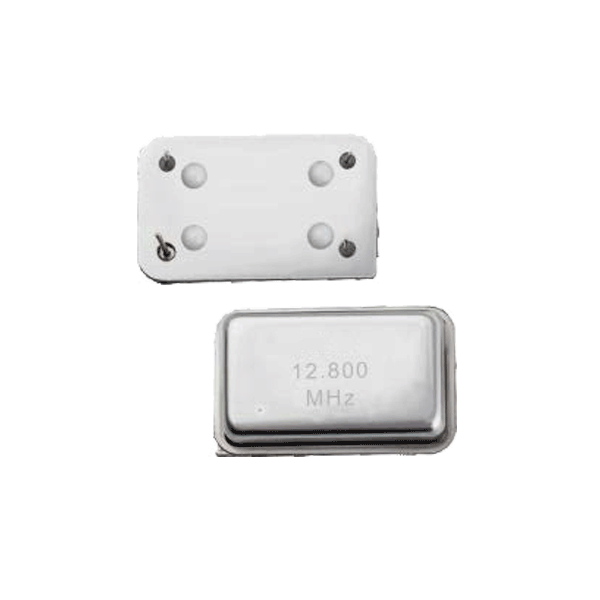

Features Of 6RF Series Full-size 14Pin DIP VCXO
All metal welded package
High precision characteristic covering up to wide frquency range from 1MHz to 80MHz
5V/3.3 operating voltage
CMOS output
3-state function
14-Pin DIP (Full-size package)
Applications: Telecommunications, Mobile communications, Avionics, Test equipment, Electronic instruments, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 6RF Series Full-size 14Pin DIP VCXO
| Item/Type | 6RF Series (Full-size 14Pin DIP VCXO) | ||
| Package | All metal, hermetically sealed, welt package | ||
| Supply Voltage | 3.3V | 5V | |
| Frequency Range |
1~80MHz |
||
| Frequency Stability | ±25ppm, ±50ppm, or specify | ||
| Operating Temperature | -20~+70℃, -40~+85℃, or specify | ||
| Storage Temperature | -55~+125℃ | ||
| Load |
|
15pF, or specify |
|
|
|
Voltage Voh | 3.0V Min. | 4.5V Min. |
| Voltage Vol | 0.3V Max. | 0.4V Max. | |
| Current Ioh | -4.0mA | -8.0mA | |
| Current Iol | 4.0mA | 8.0mA | |
| Duty Cycle | 40~60% | ||
| Rise /Fall Time |
5ns Max. |
||
| Frequency Control |
|
Positive Transfer Characteristic | |
| Pullability | ±50ppm ,±100ppm,±150ppm,±200ppm Min. | ||
| Control Voltage | 0.3Vdc to 3.0Vdc | 0.5Vdc to 4.5Vdc | |
| Center Voltage | 1.65Vcc | 2.5Vcc | |
| Monotonic Linearity | ＜±15% | ＜±15% | |
| Input Impedance | 50K ohms Normal | ||
| Supply Current | 40mA Max. | 60mA Max. | |
| Output Type |
CMOS |
||
|
Packing Unit |
100pcs. | ||

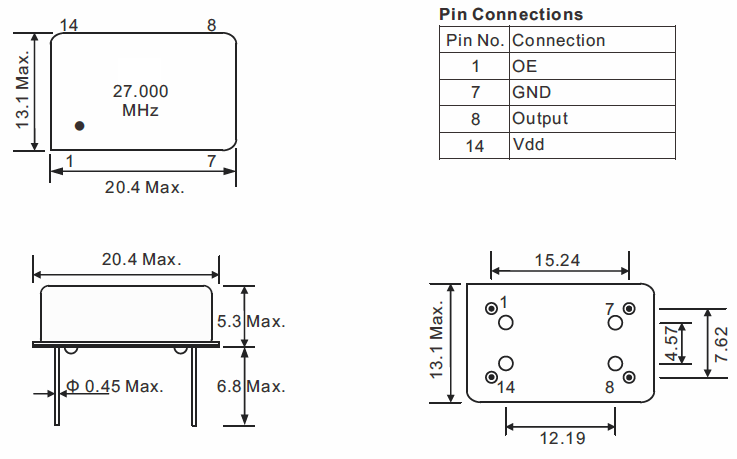

Dimensions[mm]
