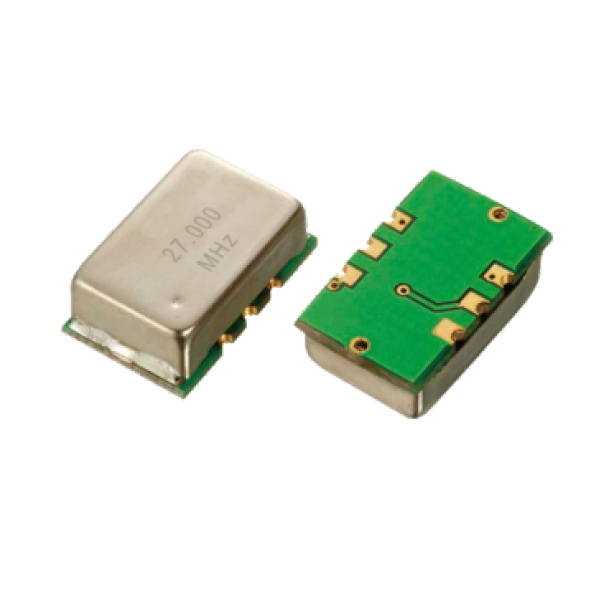

Features of 9P Series SMD LVPECL VCXO
Voltage Controlled Crystal Oscillator (VCXO)
Typical 14.2×9.3×5.4mm size. SMD VCXO
LVPECL output, output frequency range from 50MHz to 700MHz
Excellent low phase noise and jitter
3-state function available
Automatic mounting and reflow soldering
Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 9P Series SMD LVPECL VCXO
| Item /Type | 9P Series (SMD LVPECL VCXO) |
| Output Type | LVPECL |
| Output Load | 50Ω to Vcc-2V |
| Supply Voltage | 3.3V |
|
Frequency Range |
50~700MHz |
|
Supply Current |
80mA Max. |
|
Frequency Stability |
±25ppm, ±50ppm, or specify |
|
Operating Temperature |
-40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
|
Voltage Vol (Max.) /Voh (Min.) |
Vcc-1.62V /Vcc-1.025V |
| Rise (Tr) /Fall (Tf) Time | 5ns Max. |
|
Start-up Time |
10ms Max. |
|
Duty Cycle |
45~55% |
|
Absolute Pulling Range (APR)* |
±50ppm Min., or specify |
| Nominal Control Range |
0.5 Vcc |
|
Control Voltage Range |
0~Vcc |
| Lineartiy |
10% Max. |
| Phase Jitter (12KHz~20MHz) | 1pS Max. |
|
Packing Unit |
500pcs./Reel |

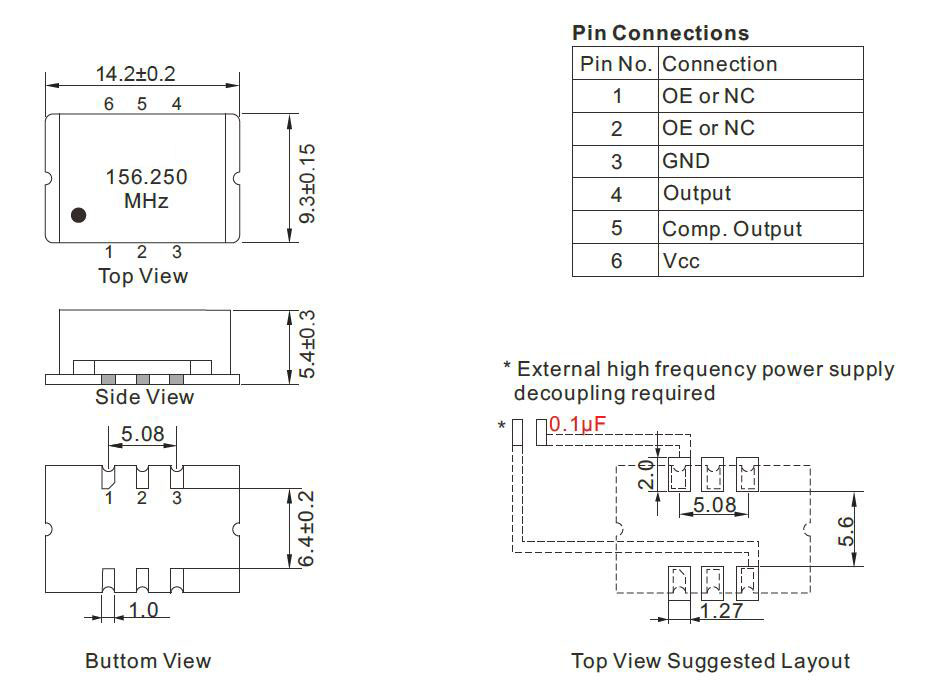

Dimensions[mm]
