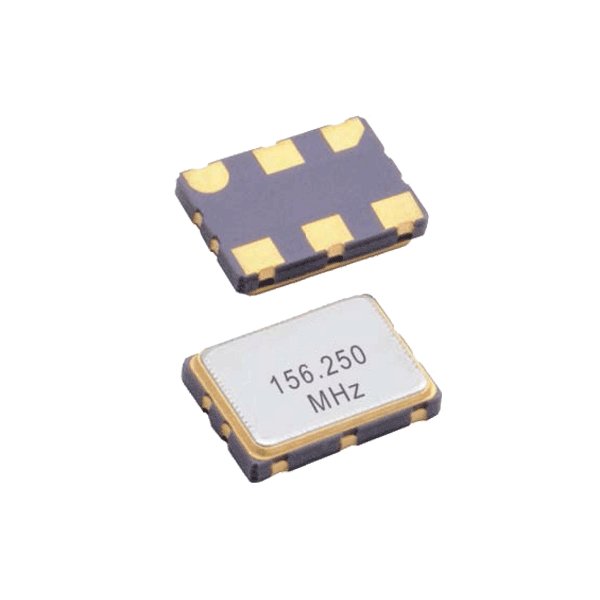

Features of 6V Series SMD 7050 LVDS VCXO
Voltage Controlled Crystal Oscillator (VCXO)
7050 size, 1.3mm hign, SMD 7050 LVPECL VCXO
LVDS output, output frequency range from 50MHz to 700MHz
Excellent low phase noise and jitter
3-state function available
Automatic mounting and reflow soldering
Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 6V Series SMD 7050 LVDS VCXO
| Item /Type | 6V Series (SMD 7050 LVDS VCXO) |
| Output Type | LVDS |
| Output Load | 100Ω |
| Supply Voltage | 3.3V |
|
Frequency Range |
50~700MHz |
|
Supply Current |
99mA Max. |
|
Frequency Stability |
±25ppm, ±50ppm, or specify |
|
Operating Temperature |
-40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
|
Voltage Vol (Max.) /Voh (Min.) |
0.9V /1.6V |
| Rise (Tr) /Fall (Tf) Time | 1ns Max. |
|
Start-up Time |
10ms Max. |
|
Duty Cycle |
45~55% |
|
Absolute Pulling Range (APR)* |
±50ppm Min., or specify |
| Nominal Control Range |
0.5 Vcc |
|
Control Voltage Range |
0~Vcc |
| Lineartiy |
10% Max. |
| Phase Jitter (12KHz~20MHz) | 10pS Max. |
|
Packing Unit |
1000pcs./Reel |

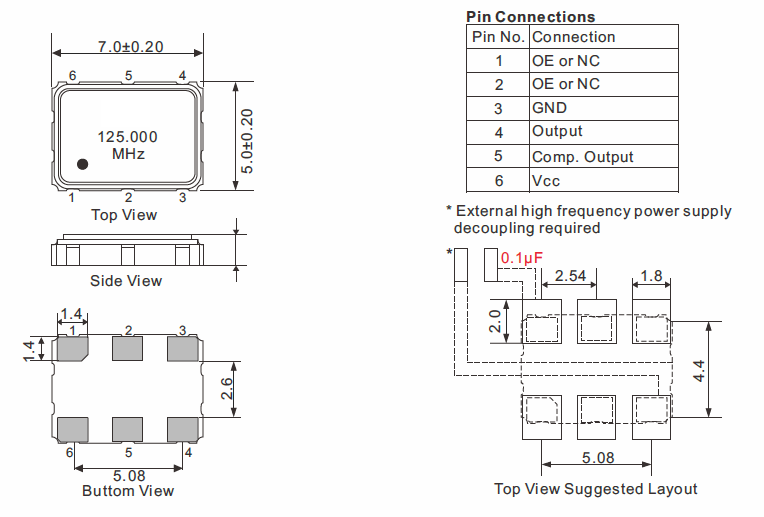

Dimensions[mm]
