Features of 5V Series LVDS SMD 5032 VCXO
Voltage Controlled Crystal Oscillator (VCXO)
5032 size, 1.2mm hign, SMD 5032 VCXO
LVDS output, output frequency range from 50MHz to 200MHz
Excellent low phase noise and jitter
3-state function available
Automatic mounting and reflow soldering
Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 5V Series LVDS SMD 5032 VCXO
| Item /Type | 5V Series (LVDS Output SMD 5032 VCXO) |
| Output Type | LVDS |
| Output Load | 100Ω |
| Supply Voltage | 3.3V |
|
Frequency Range |
50~200MHz |
|
Supply Current |
80mA Max. |
|
Frequency Stability |
±25ppm, ±50ppm, or specify |
|
Operating Temperature |
-40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
|
Voltage Vol (Max.) /Voh (Min.) |
0.9V/1.6V |
| Rise (Tr) /Fall (Tf) Time | 1ns Max. |
|
Start-up Time |
10ms Max. |
|
Duty Cycle |
45~55% |
|
Absolute Pulling Range (APR)* |
±50ppm Min., or specify |
| Nominal Control Range |
0.5 Vcc |
|
Control Voltage Range |
0~Vcc |
| Lineartiy |
10% Max. |
| Phase Jitter (12KHz~20MHz) | 1pS Max. |
|
Packing Unit |
1000pcs./Reel |

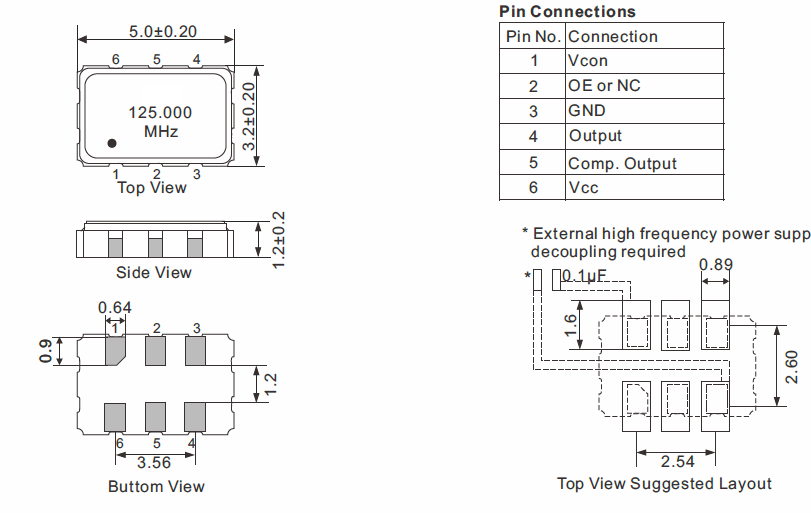

Dimensions[mm]
