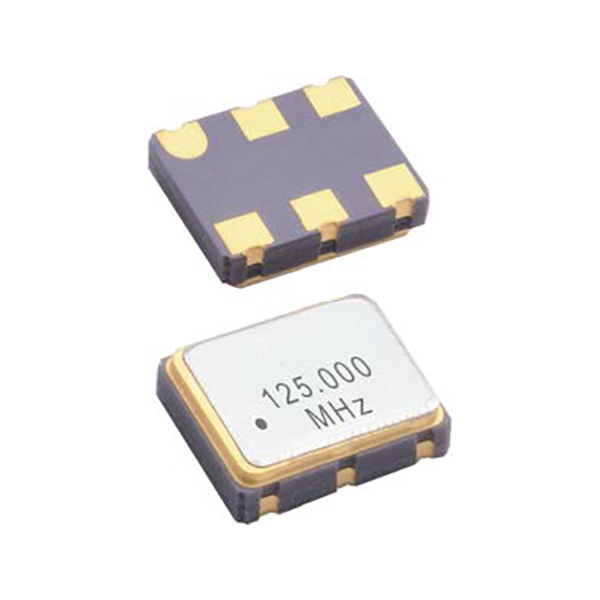

Features of 3P Series LVPECL Output SMD 3225 VCXO
Voltage Controlled Crystal Oscillator (VCXO)
3225 size, 0.95mm hign SMD VCXO
LVPECL output, output frequency range from 50MHz to 200MHz
Excellent low phase noise and jitter
3-state function available
Automatic mounting and reflow soldering
Applications: Base station, PC, FPGA, DSP, Smart grid, SATA, SAS, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 3P Series LVPECL Output SMD 3225 VCXO
| Item /Type | 3P Series (LVPECL Output SMD 3225 VCXO) |
| Output Type | LVPECL |
| Output Load | 50Ω to Vcc-2V |
| Supply Voltage | 3.3V |
|
Frequency Range |
50~200MHz |
|
Supply Current |
80mA Max. |
|
Frequency Stability |
±25ppm, ±50ppm, or specify |
|
Operating Temperature |
-40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
|
Voltage Vol (Max.) /Voh (Min.) |
Vcc-1.62V/Vcc-1.025V |
| Rise (Tr) /Fall (Tf) Time | 1ns Max. |
|
Start-up Time |
10ms Max. |
|
Duty Cycle |
45~55% |
|
Absolute Pulling Range (APR)* |
±50ppm Min., or specify |
| Nominal Control Range |
0.5 Vcc |
|
Control Voltage Range |
0~Vcc |
| Lineartiy |
10% Max. |
| Phase Jitter (12KHz~20MHz) | 1pS Max. |
|
Packing Unit |
3000pcs./Reel |

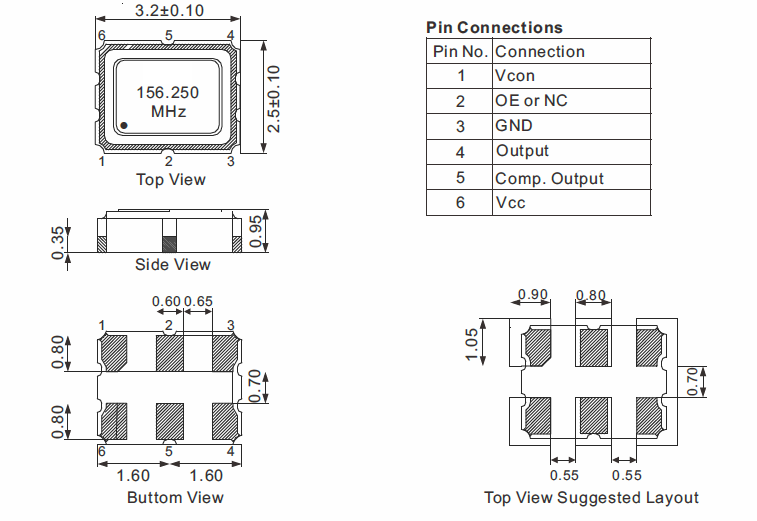

Dimensions[mm]
