Features
Package size: 7.0×5.0×1.3mm

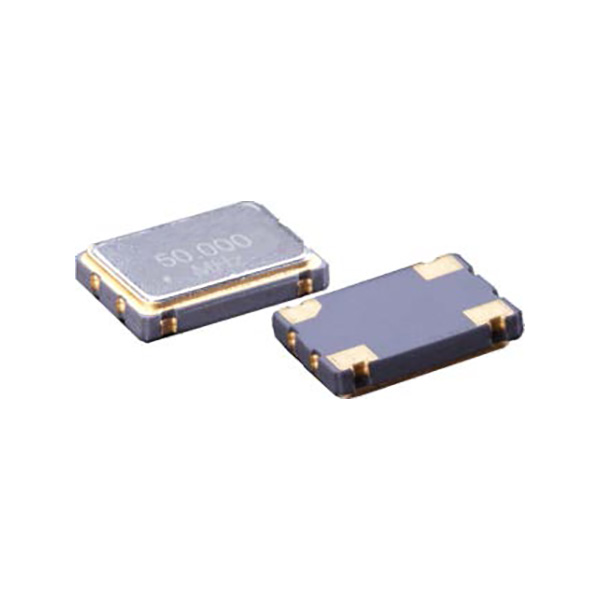

Small size SMD seam-sealed clock crystal oscillator units
Supply voltage: 1.8~5.0V
Wide frequency range: 1~170MHz
3-state function
Automatic mounting and reflow soldering
High stability, low jitter, low power consumption.
Applications: PC, Peripherals, Car Applications, Visual, Ethernet, Server, FA equipment, FC-HBA, LCDM, etc
RoHS Compliant & Pb-Free
Specifications
| Type | 6N Series SMD Crystal Oscillator |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 1.8~5.0V |
| Frequency Range | 1~170MHz |
| Supply Current | 20mA Max. |
|
Frequency Stability |
±20ppm, ±30ppm, or specify |
|
Operating Temperature |
-40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
|
Voltage Vol (Max.) / Voh (Min.) |
0.1Vdd / 0.9Vdd |
|
Rise (Tr) / Fall (Tf) Time |
8ns Max. |
| Period Jitter | 40 ps Max. |
| Duty Cycle |
40~60% |
|
Start-up Time |
5ms Max. |
|
Phase Jitter (12KHz~20MHz) |
1 ps Max. |
| Aging (at 25℃) | ±3ppm /Year Max. |
| Packing Unit | 1000pcs./Reel |

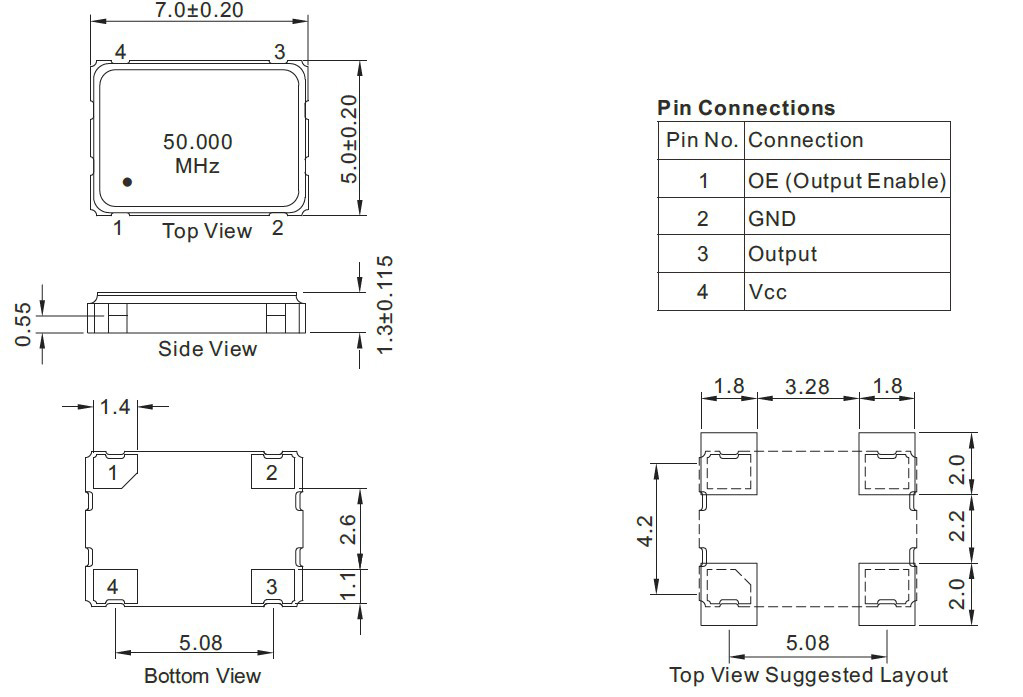

Dimensions [mm]
