Features

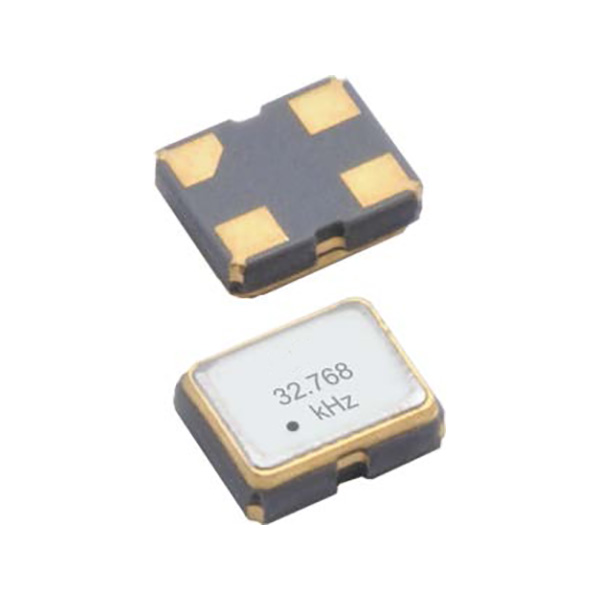

2520 size, low profile of 0.8mm, extremely small SMD crystal oscillators
CMOS output.
Low voltage operation: 1.8~3.3V
Frequency range: 4MHz to 75MHz
3-state function
High reliable environmental performance
Low Current consumption
Automatic mounting and reflow soldering
Applications: Wireless communications, GPS, WLAN, Cellular, Phone, Car applications, etc
RoHS Compliant & Pb-Free
Specifications
| Type | 2N Series SMD Crystal Oscillator |
|
Output Type |
CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 1.8~3.3V |
| Frequency Range | 4~75MHz |
| Frequency Stability | ±20ppm, ±30ppm, or specify |
|
Operating Temperature |
-40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
|
Voltage Vol (Max.) / Voh (Min.) |
0.1Vdd / 0.9Vdd |
| Rise (Tr) / Fall (Tf) Time | 5ns Max. |
|
Supply Current |
10mA Max. |
|
Symmetry |
45~55% |
|
Start-up Time |
5ms Max. |
| Period Jitter | 40 ps |
| Phase Jitter | 1 ps Max. |
| Aging (at 25℃) | ±3ppm /Year Max. |
| Packing Unit |
3000pcs. /Reel |

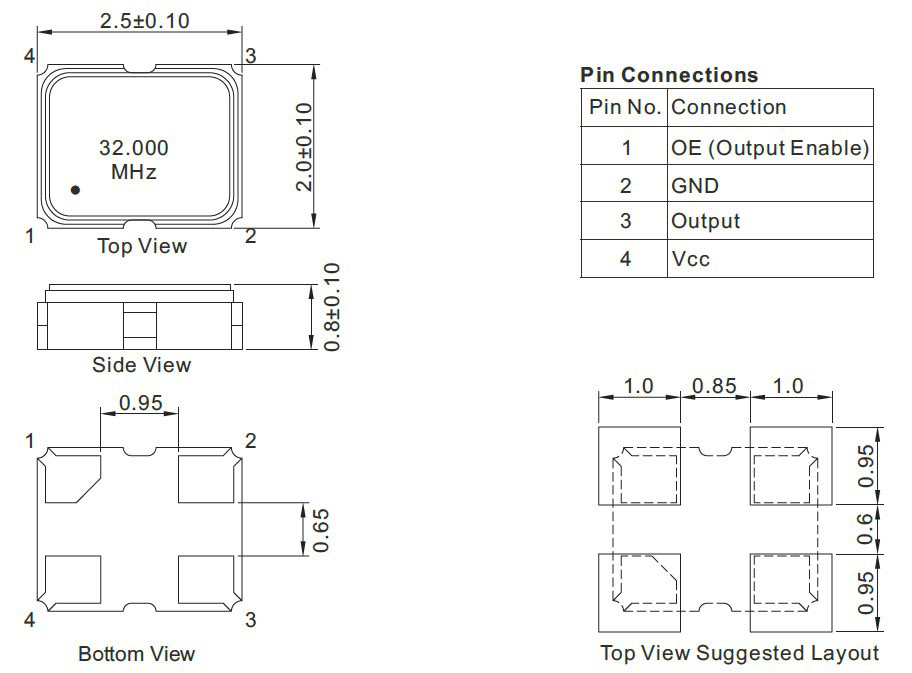

Dimensions [mm]
