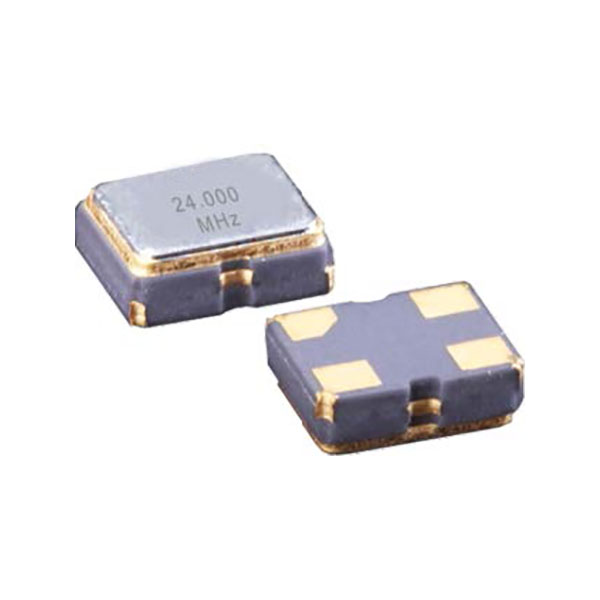

Features
2016 size, low profile of 0.75mm, extremely small SMD crystal oscillators
CMOS output.
Low voltage operation: 1.8~3.3V
Frequency range: 4MHz to 54MHz
3-state function
High reliable environmental performance
Low Current consumption
Automatic mounting and reflow soldering
Applications: Wireless Communications, GPS, Smartphone, Car Applications, etc
RoHS Compliant & Pb-Free
Specifications
Type | 1N Series SMD Crystal Oscillator |
Output Type |
CMOS |
Output Load | 15pF, or specify |
Supply Voltage | 1.8~3.3V |
Frequency Range | 4~54MHz |
Frequency Stability | ±20ppm, ±30ppm, or specify |
Operating Temperature |
-40~+85℃, or specify |
Storage Temperature | -55~+125℃ |
Voltage Vol (Max.) / Voh (Min.) |
0.1Vdd / 0.9Vdd |
Rise (Tr) / Fall (Tf) Time | 5ns Max. |
Supply Current |
5mA Max. |
Symmetry |
45~55% |
Start-up Time |
5ms Max. |
Period Jitter | 40 ps |
Phase Jitter | 1 ps Max. |
Aging (at 25℃) | 3ppm /Year Max. |
Packing Unit | 3000pcs. /Reel |

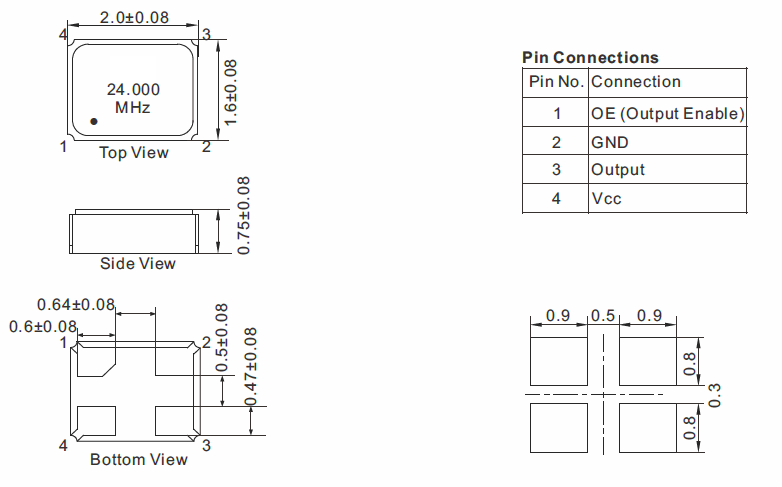

Dimensions [mm]
