Features
Differential Output Crystal Oscillator (HCSL Output)

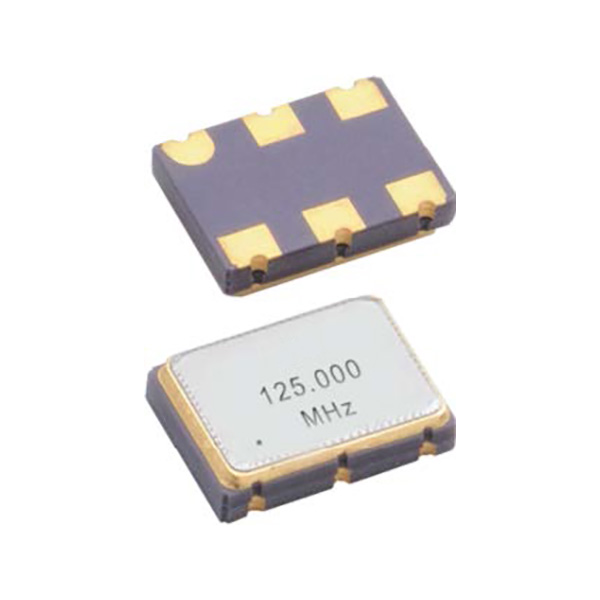

Typical 7.0×5.0×1.45mm, HCSL output crystal oscillator
Output frequency range from 25MHz to 200MHz
Low supply voltage operation: 2.5V/3.3V
Excellent low phase noise and jitter
3-state function available
Automatic mounting and reflow soldering
Applications: Server, SAN, Broadband Access, Smart Grid, Gigabit Ethernet, Fibre channel, etc
RoHS Compliant / Pb-Free
Specifications
| Type | 7H Series HCSL Output SMD Oscillator |
|
Output Type |
HCSL |
| Output Load | 50Ω |
| Supply Voltage | 2.5V/3.3V |
| Frequency Range | 25~200MHz |
| Supply Current | 30mA Max. |
| Overall Frequency Stability* | ±25ppm, ±50ppm, or specify |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
|
Voltage Vol (Max.) /Voh (Min.) |
0mV /740mV |
|
Rise (Tr) /Fall (Tf) Time |
0.5ns Max. |
| Duty Cycle |
45~55% |
| Start-up Time |
10ms Max. |
|
Phase Noise (156.25MHz) at 1KHz |
-120dBc/Hz |
|
Phase Jitter (12KHz~20MHz) |
1pS Max. |
| Aging (at 25℃) | ±3ppm/Year Max. |
| Packing Unit | 1000pcs./Reel |
*Including frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration

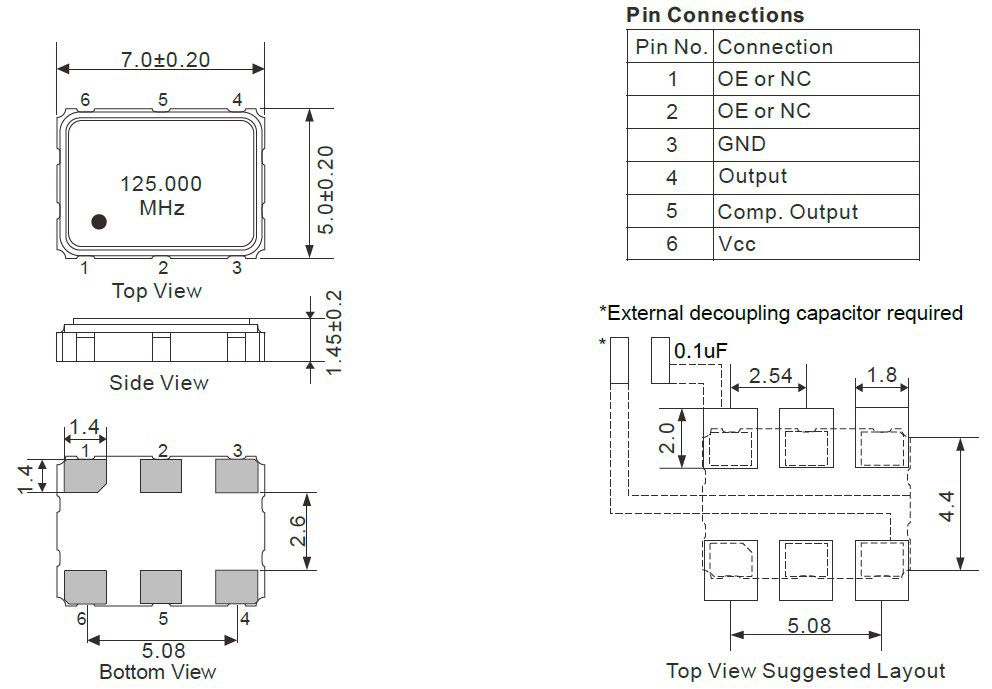

Dimensions [mm]
