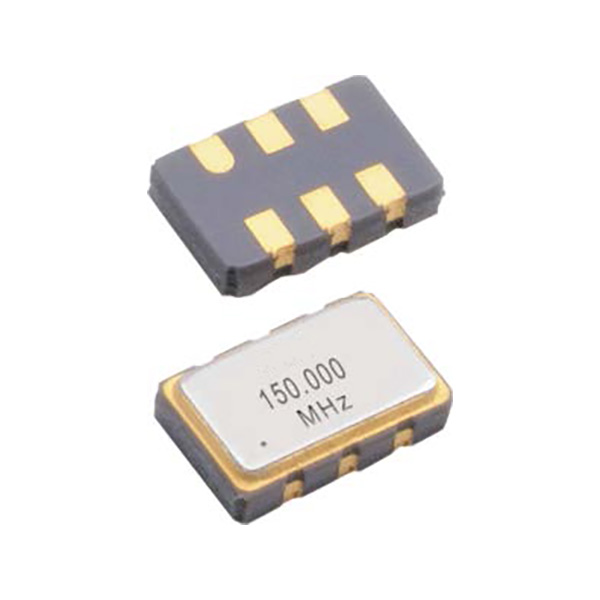

Features
Differential Output (LVDS output)
Output frequency range from 10MHz to 320MHz
2.5V/3.3V operating voltage, high-speed type
Excellent low phase noise and jitter
3-state function available
Automatic mounting and reflow soldering
Applications: PC, Server, Optical transmission device, Communication device, Fibre Channel, Ethernet, etc
RoHS Compliant / Pb-Free
Specifications
| Type | 5D Series LVDS Output SMD Oscillator |
|
Output Type |
LVDS |
| Output Load | 100Ω |
|
Supply Voltage |
2.5V/3.3V |
| Frequency Range | 10~320MHz |
|
Supply Current |
50mA Max. |
|
Overall Frequency Stability* |
±50ppm, or specify |
|
Operating Temperature |
-40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
|
Voltage Vol (Max.) /Voh (Min.) |
0.9V /1.6V |
|
Rise (Tr) /Fall (Tf) Time |
1ns Max. |
| Duty Cycle | 45~55% |
| Start-up Time | 3ms Max. |
|
Phase Noise (156.25MHz) @1KHz |
-105dBc/Hz |
|
Phase Jitter (12KHz~20MHz) |
1pS Max. |
|
Aging (at 25℃) |
±3ppm/Year Max. |
| Packing Unit | 1000pcs./Reel |
*Including frequency tolerance at 25℃, variation over temperature, supply voltage variation, aging and vibration.

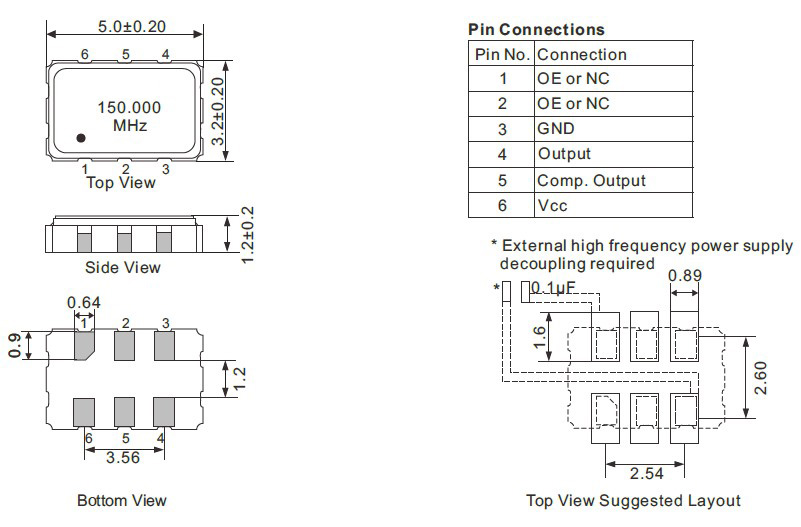

Dimensions [mm]
