Features

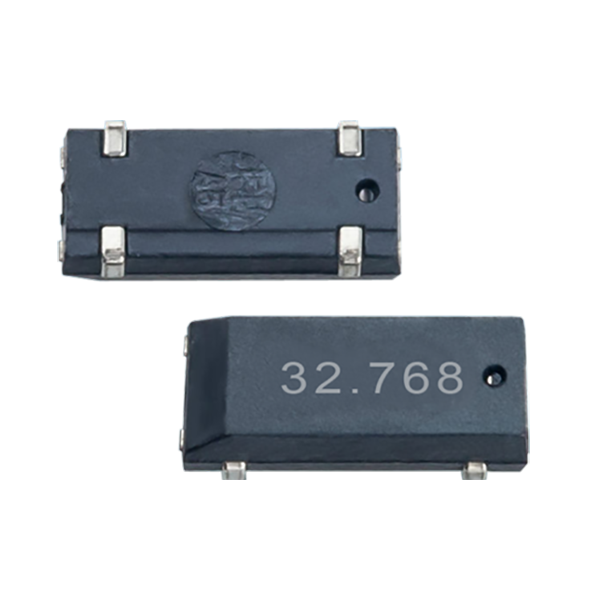

Plastic molded 32.768kHz SMD crystal unit of heat resistance
High precision and tight reliability
Small size with 3.8×8.0×2.4 mm
High reliable environmental performance
Automatic mounting and reflow soldering
Applications: Smart Communication Devices, Clock, MCU, etc.
RoHS Compliant
Specifications
Type | 6LC SMD Crystal |
Frequency Range |
32.768kHz |
Frequency Tolerance |
±20ppm, or specify |
Load Capacitance |
6.0~12.5pF, or specify |
Operating Temperature |
-40~+85℃, or specify |
Storage Temperature | -55~+125℃ |
Drive Level |
1.0μW Max. |
Turnover Temperature | ±25℃±5℃ |
Parabolic Coefficient | (-0.034±0.005)×10-6/℃ |
Shunt Capacitance | 1.5pF Typ. |
Aging (at25℃) |
±3ppm/Year Max. |
Packing Unit | 3000pcs. |

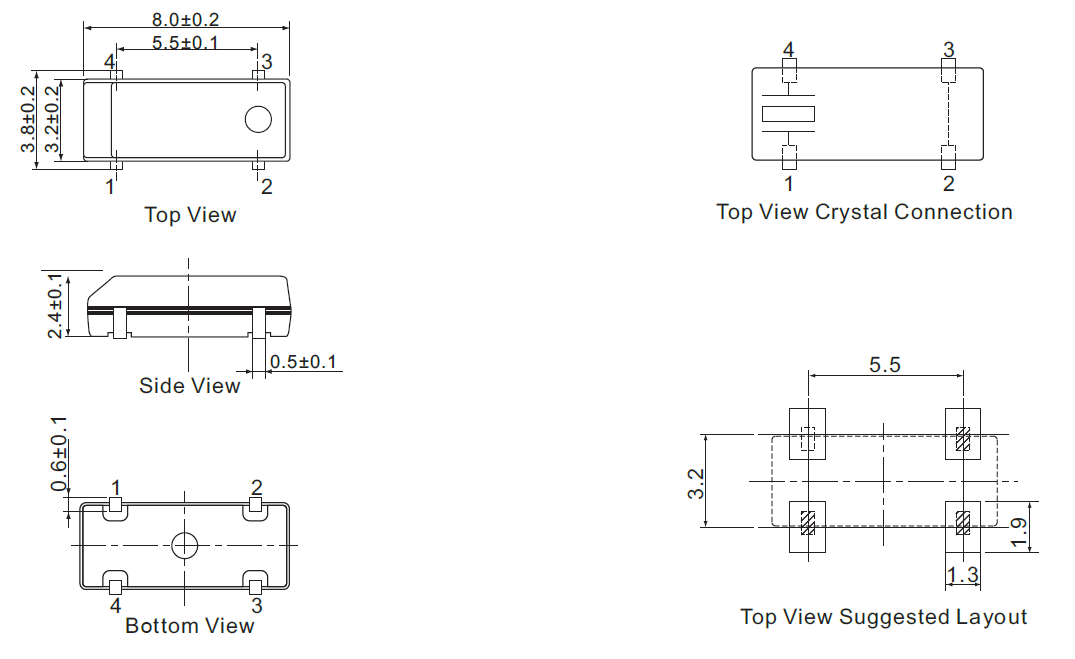

Dimensions [mm]
