Features
2 pads surface mount package.

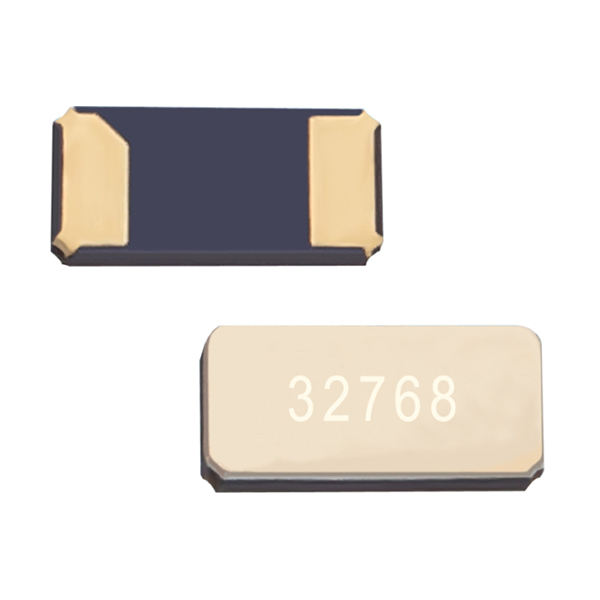

3215 size miniature and lightweight SMD tuning fork crystal resonator with a low profile of 0.75mm.
High precision and high reliability.
High reliable environmental performance.
Automatic mounting and reflow soldering.
Applications: Mobile Communications, Wave Clock, Automotive Applications, Small Communication Device, etc.
RoHS Compliant & Pb-Free
Specifications
| Type | 7L SMD Crystal |
| Frequency Range | 32.768kHz |
| Load Capacitance | 7pF, 12.5pF, or specify |
| Drive Level | 1.0μW Max. |
| Frequency Tolerance | ±20ppm, or specify |
| Series Resistance | 70kΩ Max. |
| Turnover Temperature | ±25℃±5℃ |
| Parabolic Coefficient | (0.03±0.01)*10-6/℃2 |
| Operating Temperature | -20~+70℃, -40~+85℃ |
| Storage Temperature | -55~+125℃ |
| Shunt Capacitance | 1.0pF Typ. |
| Aging (at 25℃) | ±3ppm at first year |
|
Packing Unit |
3000pcs. /Reel |
Dimensions [mm]
