Features

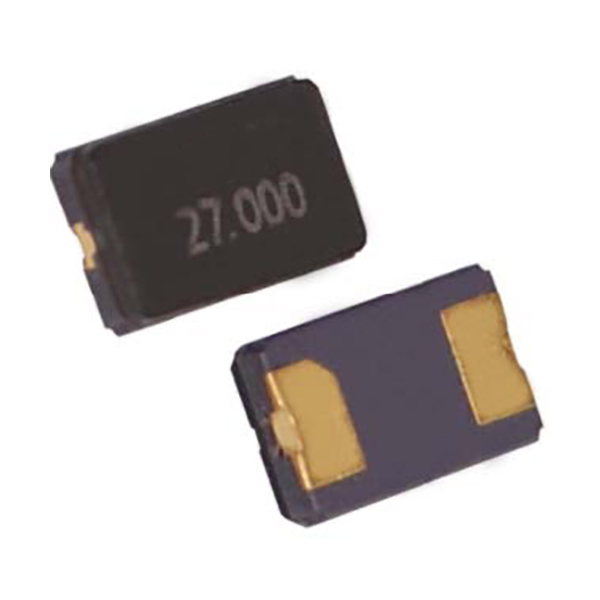

5032 size miniature SMD crystal unit with a low profile of 1.2mm
Wide frequency range from 8MHz to 64MHz
Excellent heat resistance and environmental characteristics
High precision and high reliability
Automatic mounting and reflow soldering
Reasonable cost and good delivery performance
Applications: Automotive Applications, GPS, PDA, PC, DSC, USB Interface Card, Multiplayer, AV Equipment, etc
Specifications
| Type | 6I Glass Sealed SMD Crystal | |||
| Frequency Range |
8~10MHz |
10~12MHz | 12~40MHz | 40~64MHz |
| Overtone Order | Fundamental | |||
| Load Capacitance | 10pF, 16pF, 20pF, or specify | |||
| Drive Level | 1~200μW Max. (100μW Typ.) | |||
| Frequency Tolerance (at 25ºC) | ±10ppm, ±20ppm or specify | |||
| Series Resistance | 150Ω Max. | 100Ω Max. | 50Ω Max. | 100Ω Max. |
| Shunt Capacitance | 5pF Max. | |||
| Operating Temperature | -20~+70℃, or specify | |||
| Storage Temperature | -55~+125℃ | |||
| Aging (at 25ºC) | ±3ppm /year Max. | |||
|
Packing Unit |
1000pcs./Reel | |||

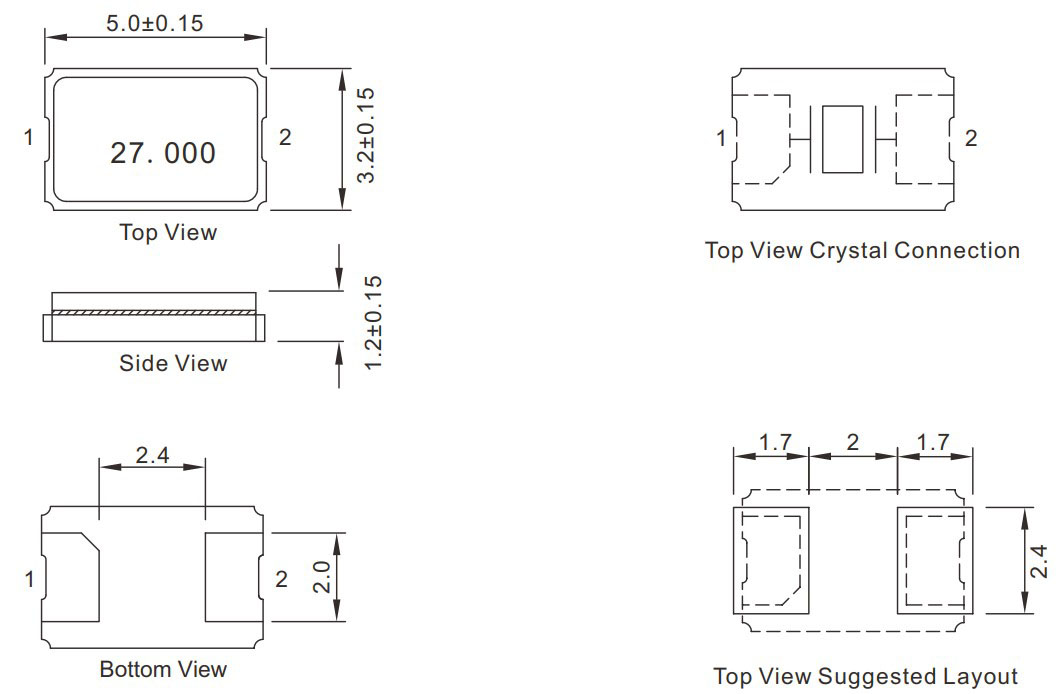

Dimensions [mm]
