Features

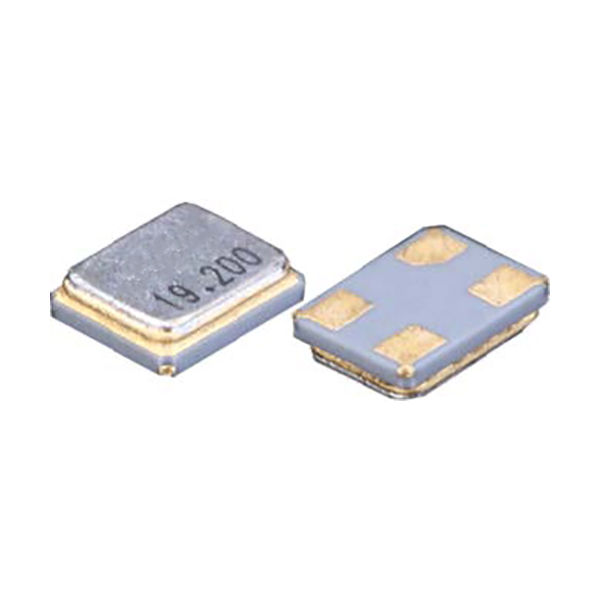

2016 size miniature and light SMD crystal unit with a low profile of 0.5mm
Wide frequency range from 16MHz to 96MHz
High precision and high-frequency stability
Automatic mounting and reflow soldering
Applications: Smal Communication Devices, Smartphone, SIP Modules, PC, Consumer Devices, etc.
Specifications
| Type | 7F Seam Sealed SMD Crystal | ||
| Frequency Range | 16~30MHz | 30~60MHz | 80MHz / 96MHz |
| Overtone Order |
Fundamental |
||
| Load Capacitance |
6pF, 8pF, 10pF, or specify |
||
|
Drive Level |
1~200μW Max. (50μW Typ) |
||
| Frequency Tolerance | ±10ppm, ±20ppm, or specify | ||
| Series Resistance | 200Ω (16~19.2MHz), 100Ω (19.2~30MHz) | 80Ω | 40Ω |
| Shunt Capacitance | 5pF Max. | ||
| Operating Temperature | -20~+70℃, or specify | ||
| Storage Temperature | -55~+125℃ | ||
| Aging (at 25℃) | ±3ppm /Year Max. | ||
|
Packing Unit |
3000pcs./Reel |
||

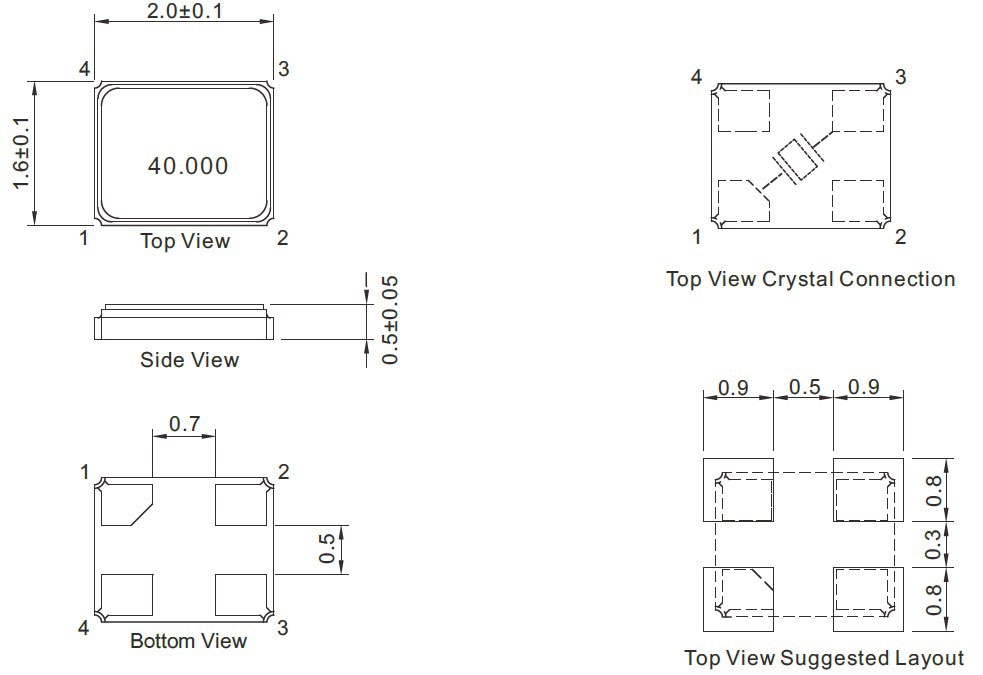

Dimensions [mm]
