Features
1612 size ultra miniature and light SMD crystal resonator with a low profile of 0.35mm
Wide frequency range from 24MHz up to 54MHz
High precision and high reliability
Automatic mounting and reflow soldering
Applications: Small Communication Devices, Small Mobile Devices, Wireless Modules, AV Equipment, PC, IoT, etc.
RoHS Compliant & Pb-Free
Specifications
| Type | 7Y Seam Sealed SMD Crystal | |
| Frequency Range | 24~30MHz | 30~54MHz |
| Overtone Order | Fundamental | |
| Load Capacitance | 8pF, 10pF, or specify | |
| Drive Level | 1~200μW (50μW Typ.) | |
| Frequency Tolerance | ±10ppm, ±20ppm, or specify | |
| Series Resistance | 100Ω | 80Ω |
| Shunt Capacitance | -20~+70℃, or specify | |
| Operating Temperature | 5pF Max. | |
| Storage Temperature | -55~125℃ | |
| Aging (at 25℃) | ±3ppm /Year Max. | |
| Packing Unit |
3000pcs./Reel |
|

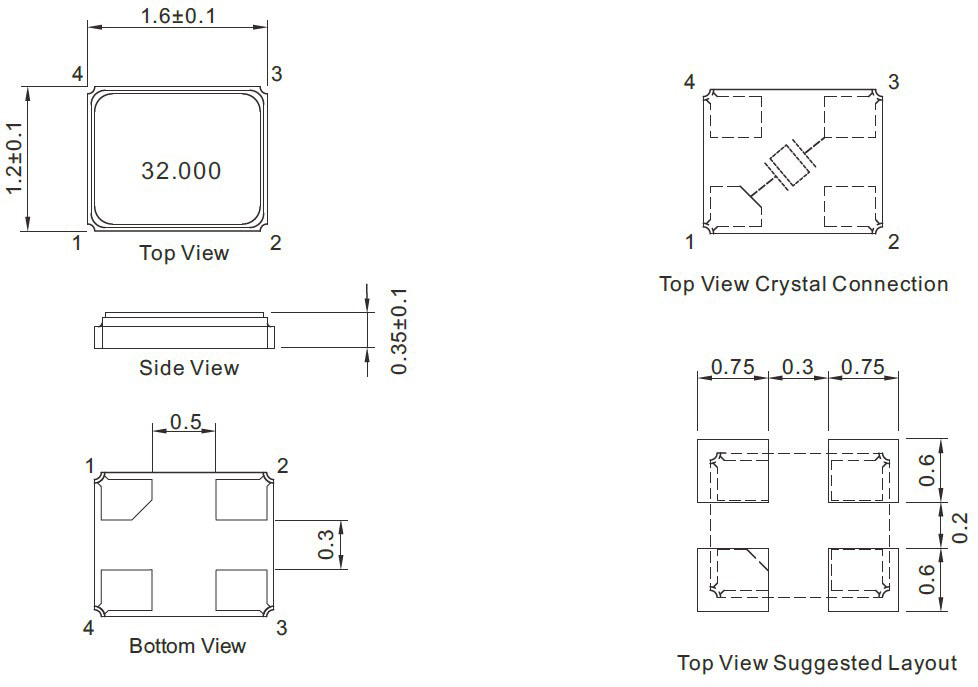

Dimensions [mm]
