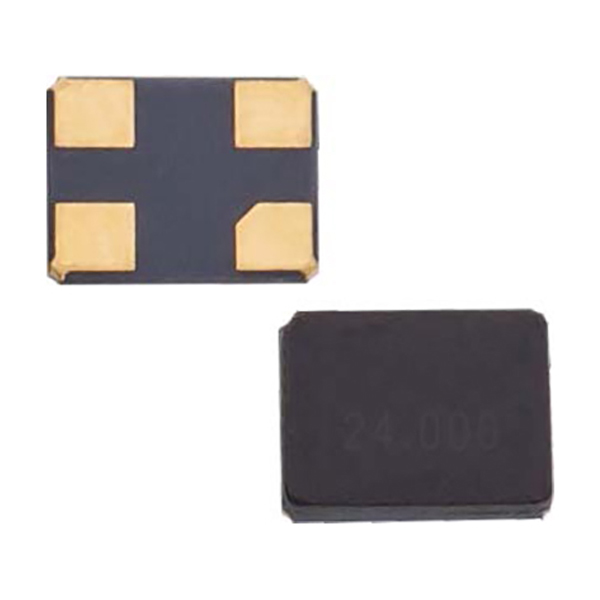

Features
2520 size miniature and lightweight SMD crystal resonator with a low profile of 0.75mm
Wide frequency range from 12MHz up to 64MHz
Excellent heat resistance.
High precision and high reliability
Automatic mounting and reflow soldering
Applications: Telecommunications, Consumer Device, DVC, PC, DSC, Automotive Applications, etc.
RoHS Compliant
Specifications
| Type | 7Z Glass Sealed SMD Crystal | |||
| Frequency Range | 12~13MHz | 13~20MHz | 20~27MHz | 27~64MHz |
| Overtone Order | Fundamental | |||
| Load Capacitance | 8pF, 10pF, 12pF, or specify | |||
| Drive Level | 1~50μW Max. (10μW Typ.) | |||
| Frequency Tolerance | ±10ppm, ±20ppm, or specify | |||
| Series Resistance | 200Ω Max. | 150Ω Max. | 80Ω Max. | 60Ω Max. |
| Shunt Capacitance | 5pF Max. | |||
| Operating Temperature | -20~+70℃, -40~+85℃, or specify | |||
| Storage Temperature | -55~+125℃ | |||
| Aging (at 25℃) | ±3ppm /Year Max. | |||
| Packing Unit |
3000pcs./Reel |
|||

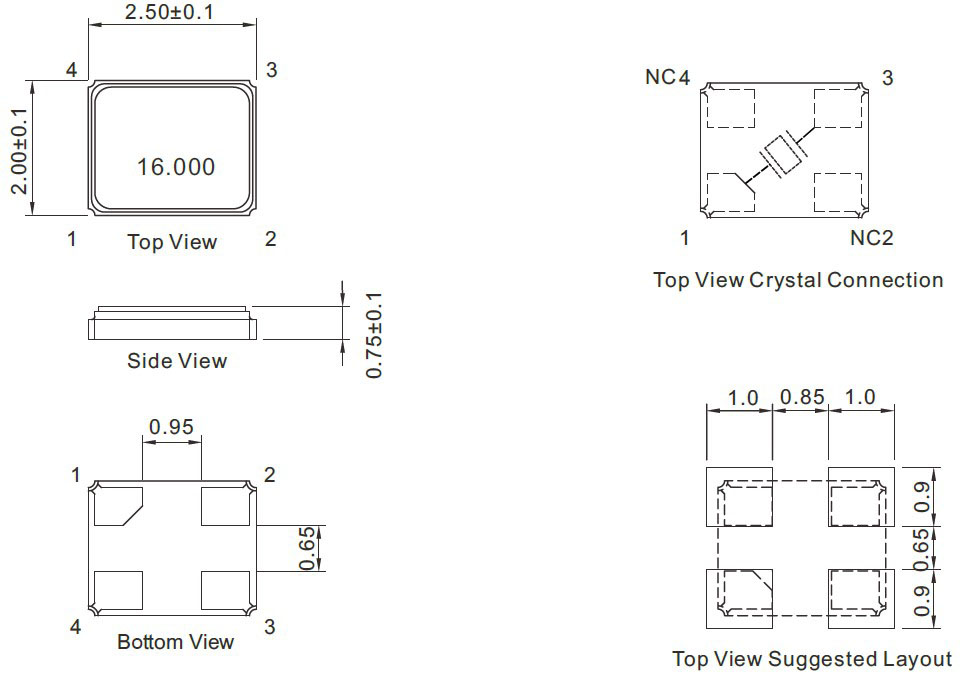

Dimensions [mm]
